11 65 185 Removing and installing/renewing heat shield at bottom (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Disconnect the BATTERY CABLE FROM THE NEGATIVE TERMINAL .
Remove FAN COWL with electric fan.
Remove the ALTERNATOR (not F04).
Remove both exhaust turbochargers . See 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63) or 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63) .
Remove both EXHAUST MANIFOLDS .

Release screws (1).

Tightening torque: 11 65 3AZ .

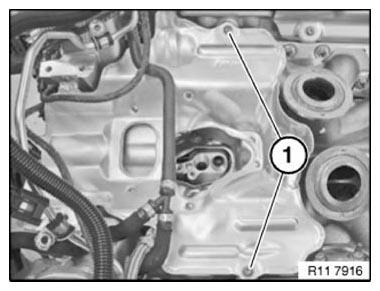

Fig 1: Identifying Heat Shield Screws (Bottom)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 65 3AZ .

Remove heat shield (2) towards top.

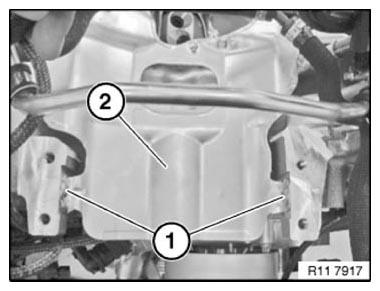

Fig 2: Identifying Heat Shield Screws (Top)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 65 3AZ .

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

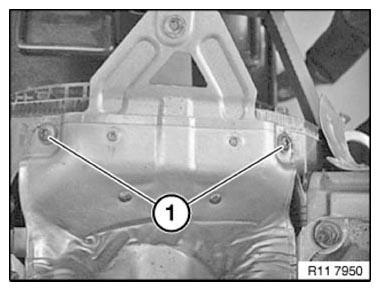

Fig 3: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release front screws on heat shield (1).

Tightening torque: 11 65 3AZ .

Remove heat shield (1) towards top.

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

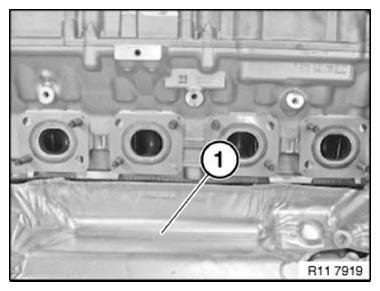

Fig 4: Identifying Front Screws On Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
