11 61 365 Removing and installing/replacing front left charge air duct (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove intake port. See 13..... REMOVING INTAKE PORT (N55) .
Remove front UNDERBODY PROTECTION .

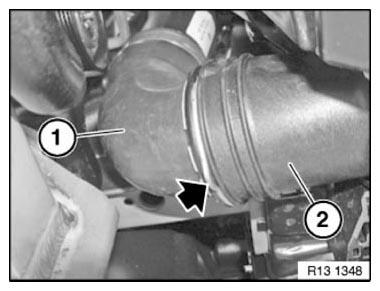

Unlock snap fastener.

Detach charge air duct (1) from charge air cooler (2).

Installation note:

Coat sealing rings of snap fasteners with lubricant.
Pressure pipes must audibly snap into place.

Fig 1: Locating Charge Air Duct From Charge Air Cooler
Courtesy of BMW OF NORTH AMERICA, INC.

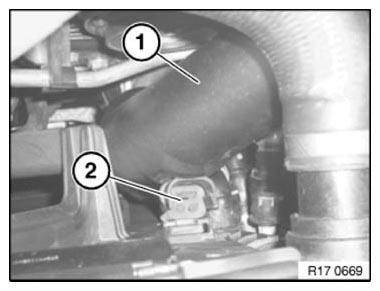

Pull pressure pipe (1) out of bracket (2).

Fig 2: Pulling Pressure Pipe Of Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

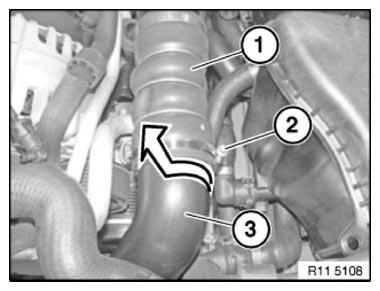

Unfasten hose clamp (2).

Tightening torque: 11 61 3AZ .

Release charge air duct (3) from gaiter (1).

NOTE: Remove charge air duct (3) in upward direction by simultaneously turning anticlockwise (see direction of arrow).

Fig 3: Removing Charge Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
