11 22 000 Removing and installing/replacing flywheel (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260

Necessary preliminary tasks:

Remove automatic transmission. See 24 00 023 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA6HP26Z) , 24 00 033 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) or 24 00 023 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP70Z) .

Secure flywheel (1) with special tool 11 9 260 .

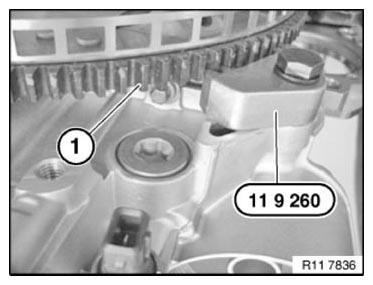

Fig 1: Securing Flywheel Using Special Tool 11 9 260

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission:

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel bolts.

Tightening torque: 11 22 1AZ .

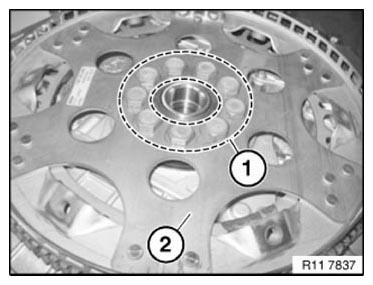

Fig 2: Identifying Threads On Flywheel Screws Area In Crankshaft
