11 22 000 Removing and installing or replacing the flywheel (automatic M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260
11 9 264
11 9 266

Necessary preliminary work:

Disconnect NEGATIVE BATTERY TERMINAL .
Remove and install front assembly underbody protection. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION .
Remove and install AUTOMATIC TRANSMISSION .

Block flywheel (1) with special tool 11 9 260 /11 9 266 /11 9 264 .

Unfasten flywheel bolts.

Installation note:

Tightening torque: 11 22 1AZ .

Flywheel (1) is secured with an dowel pin.

Fit new flywheel bolts.

Clean crankshaft thread for flywheel bolts.

Remove flywheel (1).

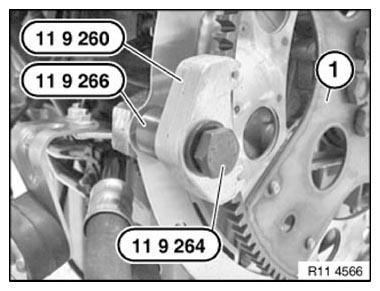

Fig 1: Identifying Flywheel With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
