11 12 106 Removing and installing right cylinder head (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470
81 22 2 184 136.
2 364 711
11 4 471
11 4 472

Necessary preliminary tasks:

Remove FRONT AXLE completely with engine and transmission.
The graphic shows the removed engine on a lifting table special tool 81 22 2 184 136.

The graphic shows the E72

Fig 1: Removing Front Axle From Engine And Transmission
Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Check TIMING .
Remove INLET AND EXHAUST ADJUSTMENT UNIT ON RIGHT SIDE .

Release screw (1).

NOTE: Guide rail is loose from cylinder head.

Fig 2: Identifying Guide Rail Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) at front from cylinder head.

Fig 3: Identifying Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

NOTE: Shown without camshafts for purposes of clarity.

Fig 4: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces of cylinder head and engine block.

Remove gasket remnants with special tool 11 4 470 .

Threaded bores in engine block must be free of dirt and oil (risk of cracking) .

Check CYLINDER HEAD FOR LEAKS .

Check CYLINDER HEAD SEALING FACE for surface evenness.

Close front oil duct using special tool (B) from tool set 2 364 711 .

Make sure no gasket debris drops into the oil and coolant ducts.

IMPORTANT: Do not use any metal-cutting tools.

Graphic: N63 O2

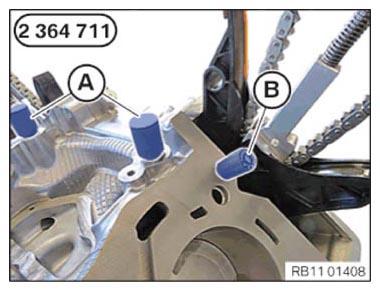

Fig 5: Identifying Front Oil Duct With Special Tool (2 364 711)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove coarse residues on sealing surfaces with special tool 11 4 471 from cylinder head and crankcase.

IMPORTANT: Do not use any cutting tools (emery cloth).

Graphic: B38

Fig 6: Removing Coarse Residues On Sealing Surfaces Using Special Tool 11 4 471

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fine residues on sealing surfaces with special tool 11 4 472 from cylinder head and crankcase.

IMPORTANT: Do not use any metal-cutting tools.
There must be no coolant, water or engine oil in the pocket holes.
Risk of cracking and corrosion!

Clean all blind holes with suitable auxiliary materials.

Fig 7: Removing Fine Residues On Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CYLINDER HEAD GASKET .

Coat joint between engine block and timing case cover with Drei Bond 1209 .

NOTE: Illustrations show N62.

Fig 8: Locating Coat Joint Between Engine Block And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting sleeves (1) for damage and correct installation position.

Fit new cylinder head gasket (2).

Fig 9: Identifying Fitting Sleeves And Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

Do not wash off bolt coating.

Insert new cylinder head bolts and initially tighten so that they are free of play.

Tighten down the cylinder-head bolts in order 1... 10.

Tightening torque: 11 12 1 AZ .

Fig 10: Right Cylinder Head Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque: 11 12 2 AZ .

Fig 11: Identifying Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque: 11 31 3 AZ .

Fig 12: Identifying Guide Rail Screw

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts . See 11 31 034 REMOVING AND INSTALLING/REPLACING RIGHT INLET CAMSHAFT (N63) or 11 31 038 REMOVING AND INSTALLING/RENEWING RIGHT EXHAUST CAMSHAFT (N63) .

Install INLET AND EXHAUST ADJUSTMENT UNIT ON LEFT SIDE .

Assemble engine.
