11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: When the engine is shut down, the inlet and exhaust camshaft adjuster is normally locked in its initial position.
The situation may arise in some individual cases where this initial position is not reached and the camshaft can continue to be rotated in the adjustment range of the camshaft adjuster.
Where central bolts are not greased at the bolt contact points up to engine number 20024295  , the adjustment gear must be replaced for safety reasons.
The central bolts is greased from engine number 20024296  .

(cylinder bank 1 to 4)

Necessary preliminary work:

To release central bolts, use special tool 11 9 890 or grip at hexagon head of camshaft.

Fig 1: Releasing Central Bolts Using Special Tool 11 9 890
G09953577Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: If special tool 11 9 890 can not be fitted, it is necessary when releasing the central bolt to grip the hexagon head of the respective camshafts.

Release central bolts (1 and 2) of intake and exhaust camshaft adjusters.

Installation note:

Replace central bolts after releasing.

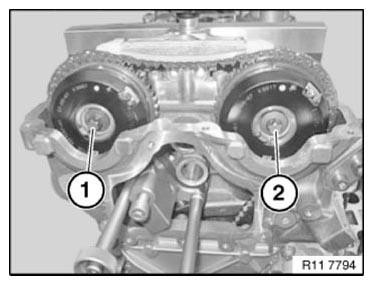

Fig 2: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G09953578Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Check whether head of central bolt (1) is greased (see arrow).
If no grease can be seen on the bolt head of central bolt (1), the inlet and exhaust adjustment unit must be replaced for safety reasons.

Installation note:

Coat contact face of central bolt (1) with copper paste.

Fig 3: Locating Central Bolt Head
G09953579Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon socket screw.

Release special tool 11 9 900 at knurled screws and remove.

Fig 4: Releasing Hexagon Socket Screw
G09953580Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove upper tensioning rail (2).

Fig 5: Identifying Upper Tensioning Rail Screws
G09953581Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (1) of exhaust adjustment unit.

Installation note:

Replace central bolts after releasing.

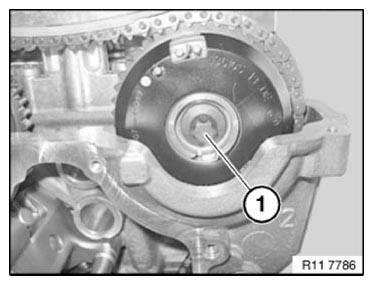

Fig 6: Identifying Exhaust Adjustment Unit Central Bolt
G09953582Courtesy of BMW OF NORTH AMERICA, INC.

Detach exhaust adjustment unit (1) in direction of arrow from exhaust camshaft.

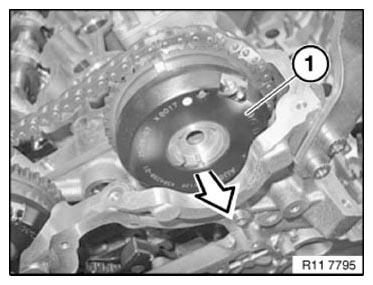

Fig 7: Disconnecting Exhaust Adjustment Unit From Exhaust Camshaft
G09953583Courtesy of BMW OF NORTH AMERICA, INC.

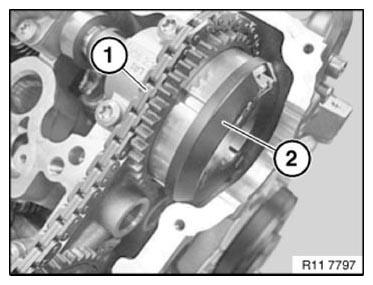

Feed out exhaust adjustment unit (2) from timing chain (1).

Lift out exhaust adjustment unit (2).

Fig 8: Identifying Exhaust Adjustment Unit From Timing Chain
G09953584Courtesy of BMW OF NORTH AMERICA, INC.

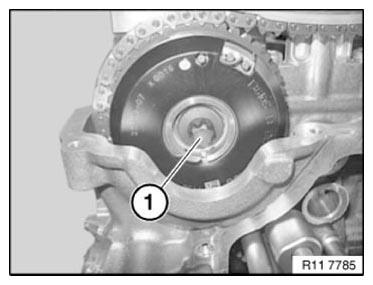

Remove central bolt (1) of inlet adjustment unit.

Installation note:

Replace central bolts after releasing.

Fig 9: Identifying Inlet Adjustment Unit Central Bolt
G09953585Courtesy of BMW OF NORTH AMERICA, INC.

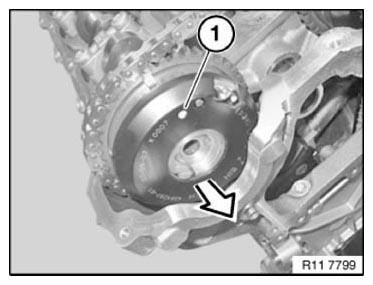

Detach inlet adjustment unit (1) in direction of arrow from inlet camshaft.

Fig 10: Disconnecting Inlet Adjustment Unit From Inlet Camshaft
G09953586Courtesy of BMW OF NORTH AMERICA, INC.

Feed out inlet adjustment unit (2) from timing chain (1).

Lift out inlet adjustment unit (2).

Fig 11: Identifying Inlet Adjustment Unit From Timing Chain
G09953587Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:

Intake and exhaust camshaft adjusters are different.

Mixing up the inlet and exhaust adjustment units will cause damage to the engine.

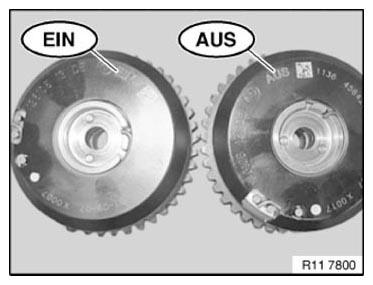

  1. Intake camshaft adjuster (1) is marked IN
  2. Exhaust camshaft adjuster (2) is marked OUT
    Fig 12: Identifying Intake And Exhaust Camshaft Adjusters
    G09953588Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

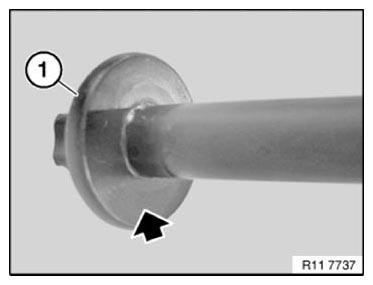

Coat contact face of central bolt (1) with copper paste.

Fig 13: Locating Central Bolt Head
G09953589Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of adjustment units in relation to timing chain can be freely selected.

Feed adjuster into timing chain and position on camshafts.

Insert central bolts (1 and 2) on adjustment units without gaps.

Release central bolts (1 and 2) by 90  °.

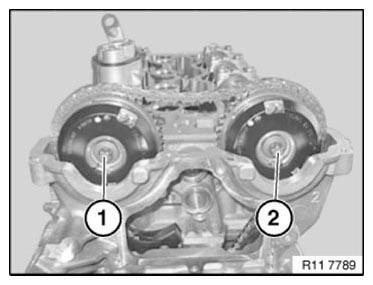

Fig 14: Identifying Central Bolts On Adjustment Units
G09953590Courtesy of BMW OF NORTH AMERICA, INC.

Fit sliding rail (2) and secure with screws (1).

Tightening torque: 11 31 4AZ .

Fig 15: Identifying Sliding Rail With Screws
G09953591Courtesy of BMW OF NORTH AMERICA, INC.

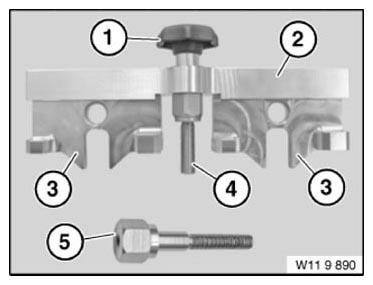

Get set of special tools 11 9 890 ready for securing camshafts.

Fig 16: Identifying Special Tools Kit
G09953592Courtesy of BMW OF NORTH AMERICA, INC.

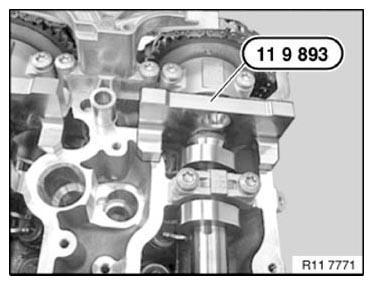

Place special tool 11 9 893 on exhaust camshaft.

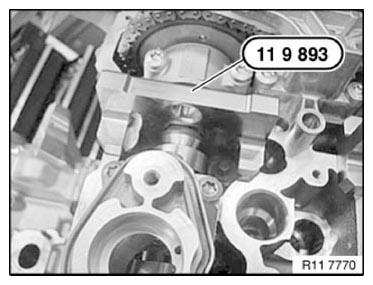

Fig 17: Placing Special Tool 11 9 893 On Exhaust Camshaft
G09953593Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 893 on intake camshaft.

Installation note:

Align exhaust and intake camshafts so that special tools 11 9 893 lie on the cylinder head without any gap.

Fig 18: Fitting Special Tool 11 9 893 On Intake Camshaft
G09953594Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 9 894 into cylinder head.

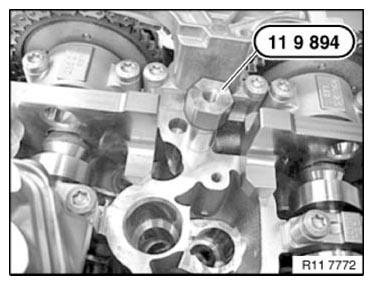

Fig 19: Screwing Special Tool 11 9 894 Into Cylinder Head
G09953595Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 11 9 892 down with special tool 11 9 891 .

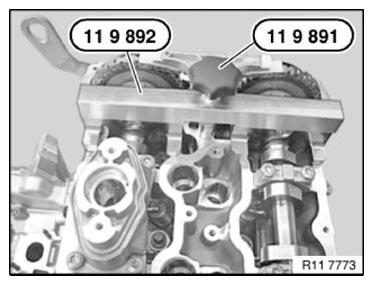

Fig 20: Pressing Special Tool 11 9 892 Down With 11 9 891
G09953596Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 11 9 900 .

Pretension timing chain with special tool 11 9 900 .

Preload hexagon socket screw with special tool 00 9 250 to 0.6 Nm  .

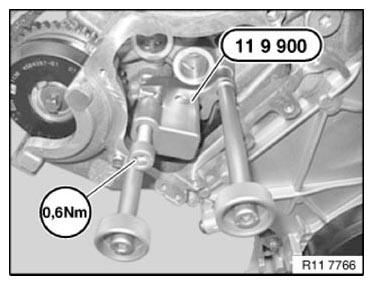

Fig 21: Screwing Special Tool 11 9 900
G09953597Courtesy of BMW OF NORTH AMERICA, INC.

Check special tools 11 9 190 for correct seating.

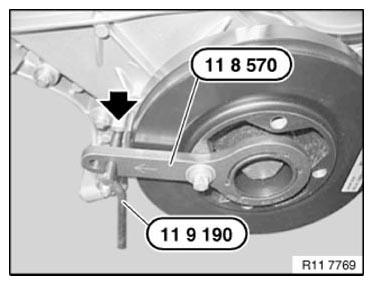

Fig 22: Checking Special Tools 11 9 190 For Correct Seating
G09953598Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down central screw (1 and 2) of the adjustment units with special tool 00 9 120 .

Tightening torque: 11 36 1AZ .

Fig 23: Tightening Down Central Screw Of Adjustment Units
G09953599Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of rotation until engine is in the 150° firing TDC position cylinder 1  again.

Mount special tool 11 8 570 on vibration damper with a bolt.

Secure special tool 11 9 190 at 150° before cylinder no. 1 firing TDC position  .

Fig 24: Mounting Special Tool 11 8 570 On Vibration Damper With Bolt
G09953600Courtesy of BMW OF NORTH AMERICA, INC.

Check timing  . See 11 31 070 CHECKING CAMSHAFT TIMING ON LEFT SIDE (N63)  or 11 31 071 CHECKING CAMSHAFT TIMING ON RIGHT SIDE (N63)  again.

Remove all special tools.
