11 31 034 Removing and installing/replacing right inlet camshaft (N63)

Special tools required:

• 11 4 480

  (cylinder bank 1 to 4)

Necessary preliminary tasks:

• Remove right CYLINDER HEAD COVER .
• Check TIMING .
• Remove RIGHT INLET ADJUSTMENT UNIT .

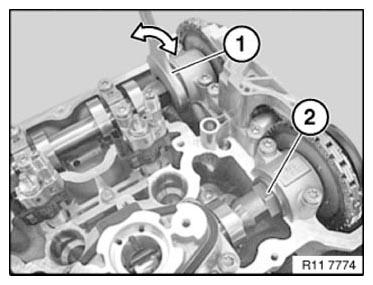

Rotate right inlet camshaft (2) at dihedron with a fork wrench (1) into a suitable position.

Fig 1: Rotating Right Inlet Camshaft At Dihedron With Fork Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

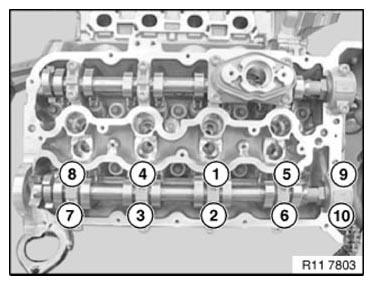

Release bolts of camshaft bearings in sequence (10 to 1) in 1/2 turns.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480 .

Intake camshaft

Fig 2: Right Intake Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

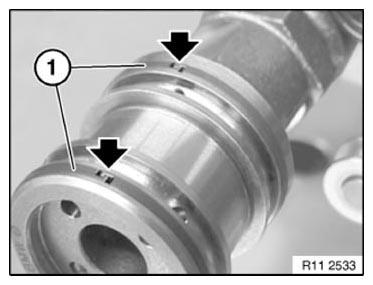

If necessary, replace plain compression rings (1).

Press plain rectangular compression ring (1) on one side into groove, pull up on other side and unhook latch mechanism.

Carefully pull plain rectangular compression ring (1) apart and remove towards front.

Ends of plain rectangular compression rings (1) point upwards.

Make sure plain rectangular compression rings (1) are engaged at ends.

Fig 4: Locating Plain Rectangular Compression Ring

Courtesy of BMW OF NORTH AMERICA, INC.

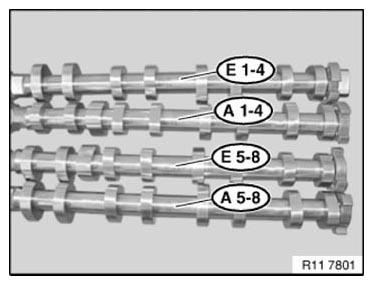

Fig 5: Identifying Intake Camshaft Of Cylinder Bank

Courtesy of BMW OF NORTH AMERICA, INC.

Align all rocker arms (1) straight.

Fig 6: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

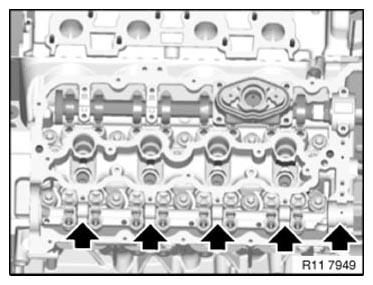

Coat all bearing positions with engine oil.

Fig 7: Locating Bearing Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intake camshaft.

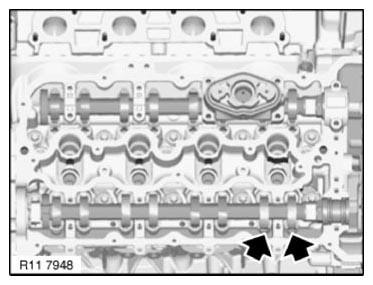

Insert inlet camshaft (1) so that cams point to side at cylinder 1 as shown in picture.

Fig 8: Inserting Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

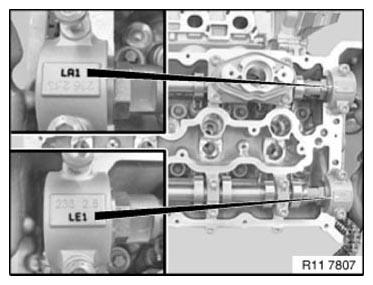

All bearing caps are marked with letters and numbers:

Fig 9: Identifying Bearing Caps Mark

Courtesy of BMW OF NORTH AMERICA, INC.

L = Cylinder bank 1-4.

R= Cylinder bank 5-8.

E = Intake side

A = Exhaust side

1 = designation, bearing point, from 1 to 5

Insert all bolts.

Tighten down bolts in sequence (1 to 10) in 1/2 turns.

Tightening torque: 11 31 6 AZ .

Tightening torque: 11 31 7 AZ .

Fig 10: Right Intake Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install INLET ADJUSTMENT UNITS .

Adjust VALVE TIMING .

Assemble engine.
