11 21 531 Replace all crankshaft main bearing shells (M57T2-SCR)

Special tools required:

• 00 2 590
• 00 9 120

Necessary preliminary work:

• Remove ENGINE
• Remove CYLINDER HEAD .
• Remove THE GEAR CASE  at front
• Remove RADIAL SHAFT SEAL  at rear
• Remove OIL PUMP

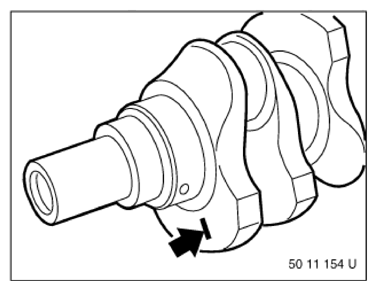

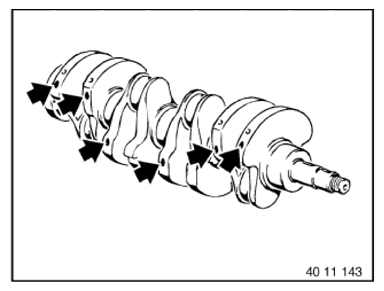

Fig 1: Locating Grinding Stage Mark Of Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When exchanging bearing shells (also exchange crankshafts), classification of bearing shell allocation in the crankcase is discontinued.

Only fit yellow  bearing shells into the crankcase.

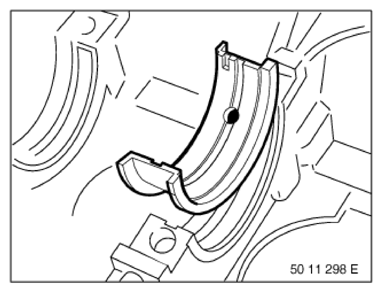

Fig 2: Locating Yellow Bearing Shells Into Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Guide Bearing Shell In Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

The crankshaft is marked with yellow, green or white paint, depending on the tolerance of the main bearing journal.

Fig 4: Locating Crankshaft Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The bearing shell classification for the bearing cap is marked on the crankshaft in yellow, green or white paint.

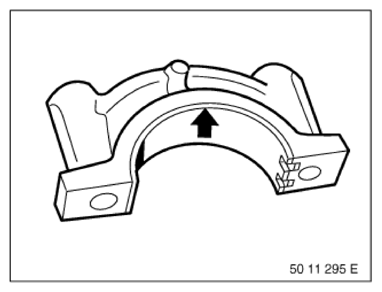

Fig 5: Locating Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

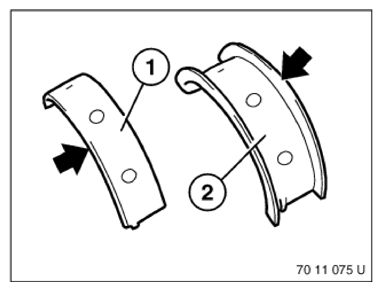

The bearing shells are marked with yellow, green or white paint.

1. Bearing shell
2. Guide bearing

Observe grinding stage of main bearing journals. See 1121 CRANKSHAFT AND BEARINGS (M57T2, TOP/SCR, D30) .

Fig 6: Locating Bearing Shell And Guide Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

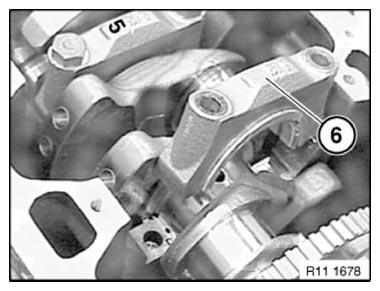

Main bearing cap 6 is a guide bearing.

Fig 7: Identifying Main Bearing Cap 6 In Guide Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Check the main bearing clearance on the crankshaft.

Install crankshaft, fit special tool 00 2 590 (Plastigage type PG1) on the oil-free crankshaft.

Do not twist crankshaft.

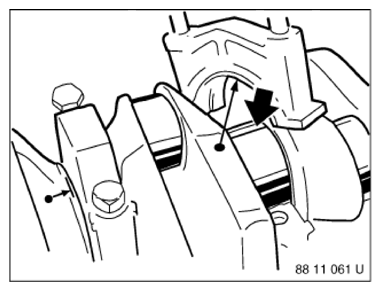

Fig 8: Checking Main Bearing Clearance On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

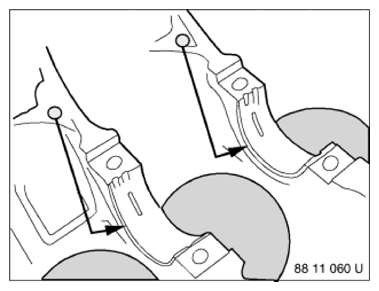

Install main bearing cap so that grooves in main bearing shell guide are on one side.

Align main bearing cap flush with side of bearing seat.

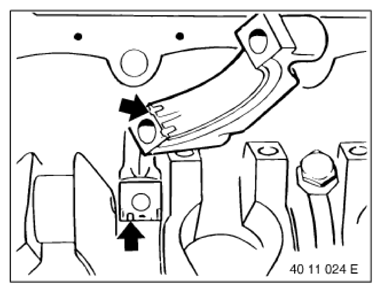

Fig 9: Locating Main Bearing Shell Guide Grooves

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening specifications for main bearing:

1. Tighten screws to jointing torque.
2. Tighten down bolts with special tool 00 9 120 to angle of rotation.

   Tightening torque: 11 11 1AZ .

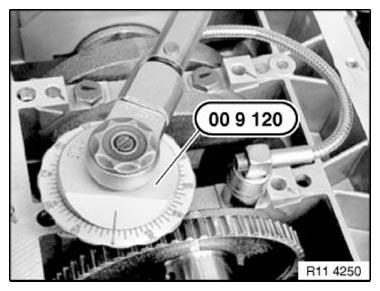

   Fig 10: Tightening Main Bearing Bolts Using Special Tool 00 9 120

   Courtesy of BMW OF NORTH AMERICA, INC.

Remove main bearing cap and read off radial clearance at width of flattened plastic thread (Plastigage) with assistance of measuring scale.

If necessary, to correct bearing clearance, fit new bearing shells with a different color coding.

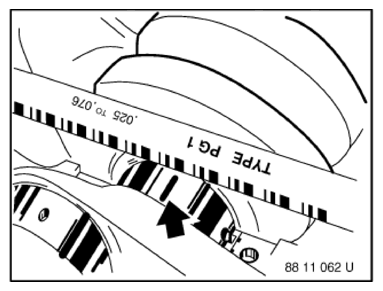

Fig 11: Checking Main Bearing Cap Radial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

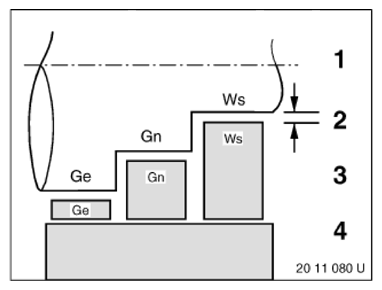

Overview:

Color code/shaft diameter/bearing strength

• Ge = yellow
• Gn = green
• Ws = white

1. Crankshaft
2. Bearing clearance
3. Bearing shells: Yellow, green, white
4. Bearing cap
   Fig 12: Identifying Color Code/Shaft Diameter/Bearing Strength

   Courtesy of BMW OF NORTH AMERICA, INC.

Install main bearing cap so that grooves in main bearing shell guide are on one side.

Align main bearing cap flush with side of bearing seat.

Fig 13: Locating Main Bearing Shell Guide Grooves

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening specifications for main bearing:

1. Tighten all screws on main bearing cap with jointing torque.
2. Loosen the screws on the main bearing cap 4.
3. Strike back and front of crankshaft with plastic hammer to center guide bearing (do not damage crankshaft).
4. Tighten bolts of main bearing cap no. 4 to jointing torque.
5. Tighten down all screws on main bearing caps with special tool 00 9 120 to angle of rotation.

   Tightening torque: 11 11 1AZ .

   Fig 14: Tightening Screws On Main Bearing Cap

   Courtesy of BMW OF NORTH AMERICA, INC.

Check side clearance. See 1121 CRANKSHAFT AND BEARINGS (M57T2, TOP/SCR, D30) .

If necessary, check guide bearing shells, crankshaft and engine block.

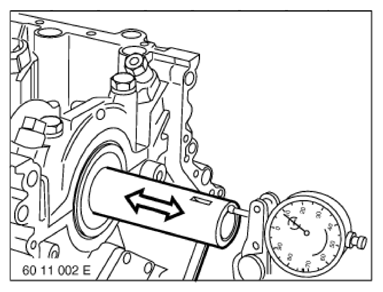

Fig 15: Checking Guide Bearing Shells Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
