11 31 001 Replacing camshafts (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Crank engine at crankshaft with special tool 11 6 480 .

The cams on the intake camshaft at the 1st cylinder point downwards.

Release screw (1).

NOTE: Bolt (1) must be removed beforehand as it is no longer accessible in TDC setting.

Camshaft sprocket classification (0) value from 0 to 9

Tightening torque: 11 31 1AZ .

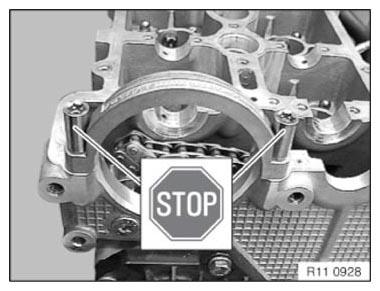

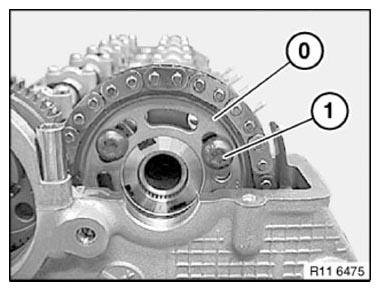

Fig 1: Identifying Intake Camshaft Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw plug in the gear case cover at bottom.

Tightening torque: 11 14 1AZ .

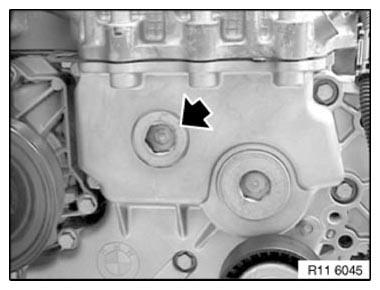

Fig 2: Locating Screw Plug In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No piston is permitted to be in the TDC setting Risk of damage .
Crank engine back at crankshaft through 45°.

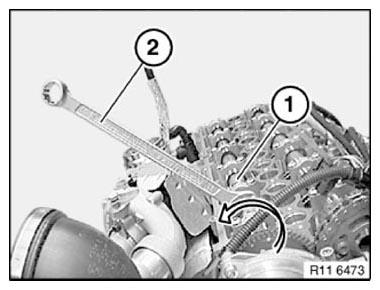

Turn exhaust camshaft at hexagon head in direction of arrow.

The hydraulic chain tensioner can be secured in place in this position with special tool 11 3 340 .

Fig 3: Turning Exhaust Camshaft At Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The hydraulic chain tensioner is forced back by rotating the exhaust and intake camshafts.

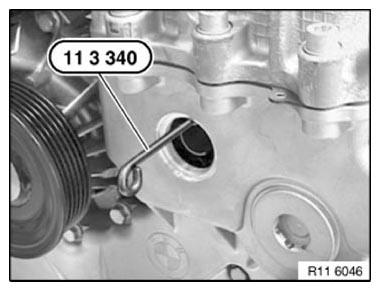

Lock hydraulic chain tensioner with special tool 11 3 340 .

NOTE: If the camshaft sprocket is removed without the hydraulic chain tensioner being locked, the chain tensioner piston will slip out and can then only be pressed back again with a considerable amount of effort.

Fig 4: Locking Hydraulic Chain Tensioner With Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

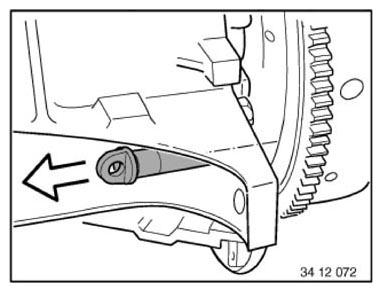

Remove protective cap in direction of arrow.

Installation note:

Reinstall protective cap with some grease.

Fig 5: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at crankshaft with special tool 11 6 480 .

Secure crankshaft at flywheel with special tool 11 6 080 .

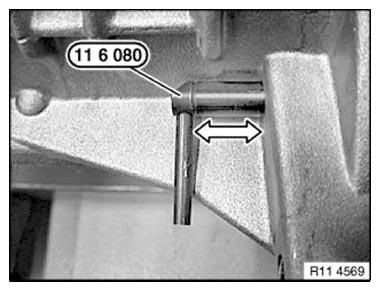

Fig 6: Identifying Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

Release camshaft sprocket bolts (1).

Release bearing journals (2) of guide rails.

Installation note:

Replace bearing journals (2).

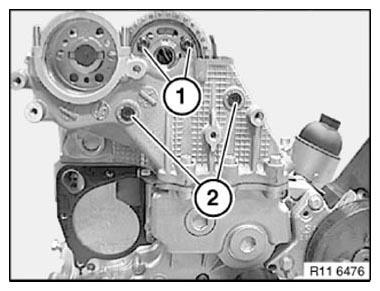

Fig 7: Identifying Camshaft Sprocket Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

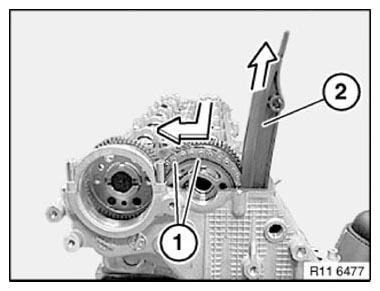

Release camshaft sprocket with chain (1) from intake camshaft in direction of arrow.

Release guide rail (2) from bracket and pull out in direction of arrow.

Fig 8: Releasing Guide Rail From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshaft sprocket (2) in direction of arrow to right from timing chain (3) and remove towards top.

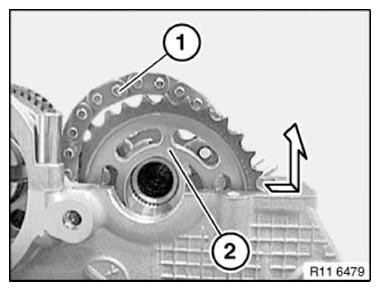

Fig 9: Removing Camshaft Sprocket To Timing Chain

Courtesy of BMW OF NORTH AMERICA, INC.

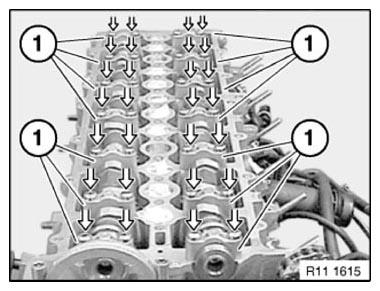

Release screws (1) of camshaft bearing cap in 1/2 revolution increments evenly from outside to inside.

Fig 10: Identifying Intake Camshaft Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps and camshafts.

All bearing caps are marked.

Fig 11: Removing Bearing Caps And Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

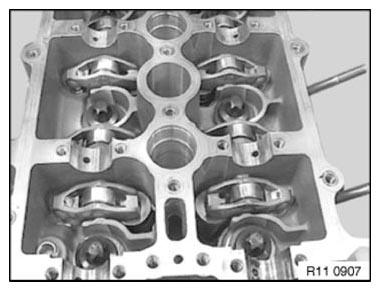

NOTE: Worn rocker arms may only be reused on the same grooves of the camshaft.

Fig 12: Identifying Worn Rocker Arms On Grooves Of Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

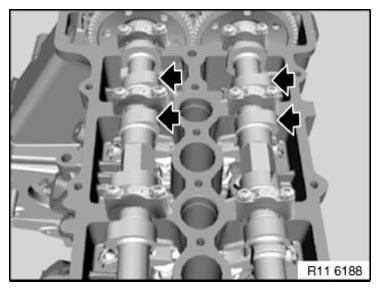

IMPORTANT: These screws must "not" be removed.

Fig 13: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: E Intake camshaft
A Exhaust camshaft

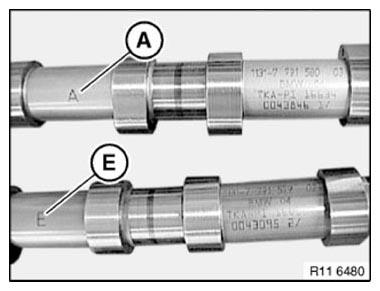

Fig 14: Identifying Intake/Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts so that cam peaks of intake and exhaust camshafts of 1st cylinder point in direction of travel to right.

NOTE: See Fig 15.

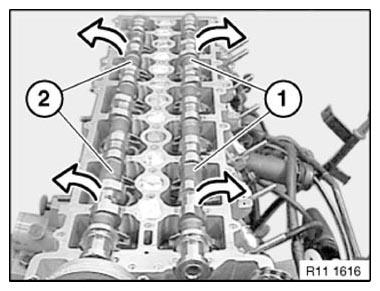

Fig 15: Locating Intake And Exhaust Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Install camshaft.

Align marking (1) on intake camshaft flush with cylinder head.

Marking (2) on exhaust camshaft flush with cylinder head.

Fig 16: Identifying Intake Camshaft With Cylinder Head Mark

Courtesy of BMW OF NORTH AMERICA, INC.

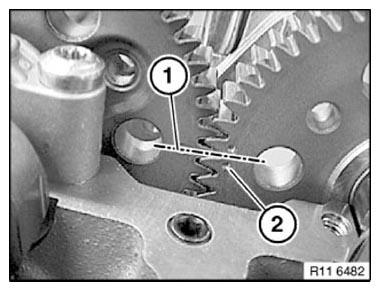

Mark (1) on intake camshaft must be between marks (2) on exhaust camshaft.

See Fig 17.

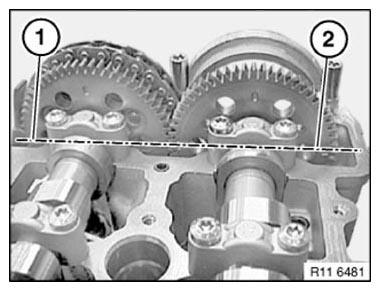

Fig 17: Identifying Intake Camshaft Gear Mark

Courtesy of BMW OF NORTH AMERICA, INC.

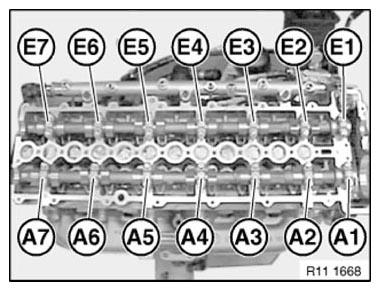

The intake camshaft bearing caps are marked E 1... E 7 from the exhaust side.

The exhaust camshaft bearing caps are marked A 1... A 7 from the exhaust side.

Fit bearing caps.

Fig 18: Identifying Intake Camshaft Bearing Caps Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all screws (1) and initially tighten so that they are free of play.

Tighten down camshaft bearing caps in 1/2 revolution increments evenly from inside to outside.

Tightening torque: 11 31 4AZ .

Fig 19: Identifying Intake Camshaft Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

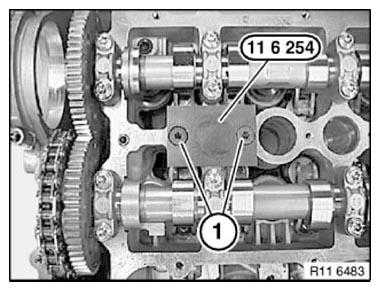

Screw special tool 11 6 254 onto cylinder head.

NOTE: See Fig 20.

Fig 20: Identifying Special Tool 11 6 254 On Cylinder Head With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check intake camshaft side clearance.

Set up special tool 11 6 250 with dial gauge.

Refer to TECHNICAL DATA .

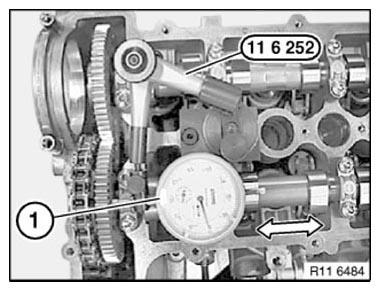

Fig 21: Setting Special Tool 11 6 250 With Dial Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust VALVE TIMING .

Assemble engine.
