11 12 000 Removing and installing/sealing cylinder head cover (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove acoustic cover at rear. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .
Remove all INJECTION SYSTEMS .

IMPORTANT: Only applies to E70
Only for vehicles with a production date between 27/01/2012 and 05/10/2012:
If during disassembly an injector shim (2) was removed in addition to a copper gasket (1), it is imperative that it is reinstalled.

Fig 1: Identifying Injector Shim And Copper Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Several cylinder heads were installed with an additional injector shim underneath the injector.
If the injector shim is not installed or two injector shims are installed, a malfunction of the engine may occur (e.g. irregular engine running, exhaust fumes).

IMPORTANT: If the injector spacer shim is lost, the entire cylinder head has to be replaced!

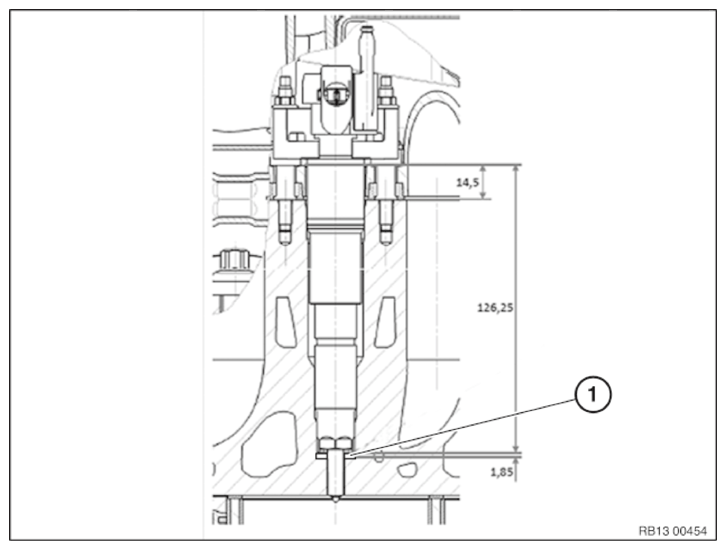

Fig 2: Identifying Injector Shaft Depth

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Several cylinder heads were installed with an additional injector shim underneath the injector.
Before installing the injector it is imperative that the depth of the injector shaft is measured using a depth gauge.
The depth of the injector shaft is 126.25 mm.
Ensure that an injector shim is installed if one is needed.
If the injector shim is not installed or two injector shims are installed, a malfunction of the engine may occur (e.g. irregular engine running, exhaust fumes).

(E70 only)

Release screws (1) (left and right sides) and remove carrier support cross connection.

Tightening torque: 51 71 4AZ .

Fig 3: Identifying Carrier Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1) on exhaust manifold.

Tightening torque: 13 62 9AZ .

Fig 4: Identifying Exhaust Manifold Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) on electropneumatic pressure converter.

Detach blue vacuum hose from vacuum unit (turbine control flap).

If necessary, disconnect red vacuum hose from vacuum unit (compressor bypass).

Fig 5: Identifying Electropneumatic Pressure Converter Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and release connector (1) under vacuum reservoir of EPPT valve.

Fig 6: Identifying Vacuum Reservoir Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vacuum reservoir.

Tightening torque: 11 00 2AZ .

Unlock, detach and disconnect connectors (2, 3 and 4).

Release fuel differential-pressure sensor (5) from vacuum reservoir.

Tightening torque: 13 62 7AZ .

Unlock and detach all connectors.

Fig 7: Identifying Vacuum Reservoir Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vacuum reservoir (1) from stud bolts (2).

Fig 8: Removing Vacuum Reservoir From Stud Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out vacuum reservoir upwards and to side.

Fig 9: Adjusting Vacuum Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2) and remove vacuum reservoir carrier.

Tightening torque: 11 00 2AZ .

Fig 10: Identifying Vacuum Reservoir Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock EPPT valve (1) from holder (2), slide forwards and remove from retaining plate.

Fig 11: Removing EPPT Valve From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 00 2AZ .

NOTE: EPPT = pressure converter.
Picture shows vacuum unit removed (turbine control flap).

Fig 12: Identifying Pressure Converter Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Detach holder (2) from cylinder head cover.

Fig 13: Identifying Cylinder Head Cover Holder And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connections (1 and 2) from heating element and detach.

Fig 14: Identifying Heating Element Connections

Courtesy of BMW OF NORTH AMERICA, INC.

On reverse side of cylinder head cover release screw (1) and detach wiring harness towards top.

Fig 15: Identifying Cylinder Head Cover Release Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on reverse side of cylinder head cover.

Fig 16: Identifying Cylinder Head Cover Release Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lay wiring harness for injection system to one side.

Fig 17: Identifying Injection System Wiring Harness Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lay rail to one side.

Tightening torque: 11 00 4AZ .

Release all bolts (arrows).

Tightening torque: 11 00 2AZ .

Release bolts (2) from inside to outside.

Tightening torque: 11 00 2AZ .

Remove cylinder head cover.

Installation note:

First tighten bolts (2) from inside to outside.

Tighten down outer bolts diagonally and evenly.

Fig 18: Locating Cylinder Head Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (arrows).

Replace profile seals (1).

Sealing surfaces clean and free of seal debris.

Fig 19: Locating Profile Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket debris from sealing surfaces (1) of cylinder head and clean.

Apply a bead of Drei Bond-1209 sealant , approx. 3 mm wide and 2 mm high, in area of joints (2).

Fig 20: Identifying Cylinder Head Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Observe ARRANGEMENT of vacuum lines.
