11 66 000 Removing and installing or replacing vacuum pump (M57T2-SCR)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.
Necessary preliminary work:
- Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .
- Partially release EGR cooler. See 11 71 100 REMOVING AND INSTALLING OR REPLACING THE EXHAUST-GAS RECIRCULATION COOLER (M57T2-SCR) .
- Detach EGR pipe.

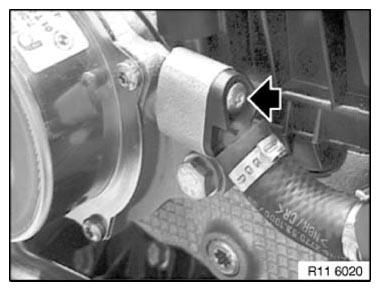

Release screw.

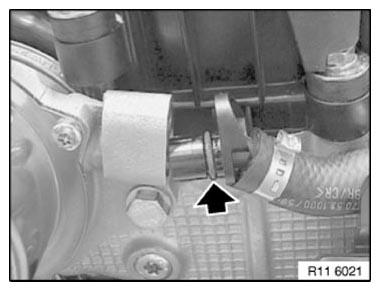

Detach coupling element of vacuum hose.
Installation note:
Replace O-ring during installation.

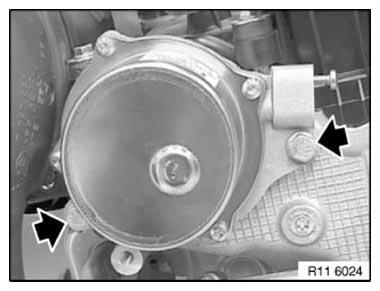

Release screws.
Remove vacuum pump.
NOTE:
Screw threads are coated with sealing compound.
Replace screws or apply Drei Bond 1209 sealing compound.
Replace screws or apply Drei Bond 1209 sealing compound.
Installation note:

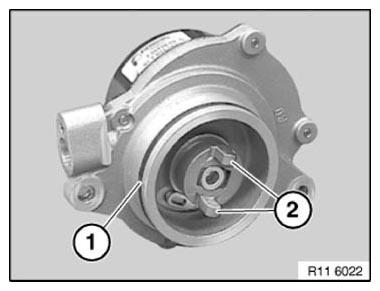

Replace O-ring (1) and apply a thin coat of lubricant.
Align driver (2) of vacuum pump to recess on camshaft gear.
NOTE:

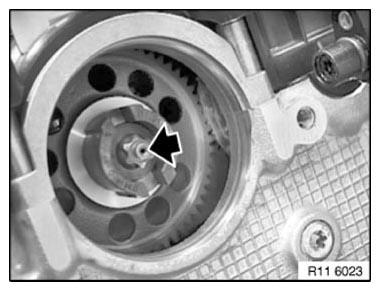

The screw on the camshaft gear has an air vent for lubricating the vacuum pump.
Assemble engine.
Check vacuum system for tightness.
