32 41... Replacing Pressure Line For Dynamic Drive (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove PRESSURE LINE PART 1 (1)  (from power steering pump to junction I on engine carrier)

Remove PRESSURE LINE PART 2 (2)  (from junction I to junction II on vehicle underbody on right)

Remove RETURN LINE AT REAR (3)

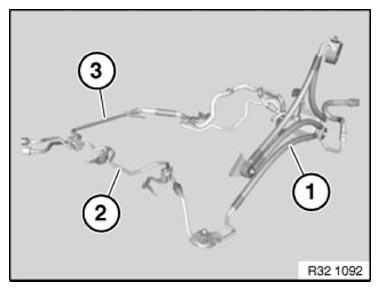

Fig 1: Pressure Line For Dynamic Drive (N63)
G09959034Courtesy of BMW OF NORTH AMERICA, INC.
