32 41 311 Replacing Intake Pipe For Hydraulic Steering (M57/N57)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable collecting vessel.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove FRONT UNDERBODY PROTECTION
- Remove air duct to intake silencer housing (only N57S1)
- Remove OIL RESERVOIR (apart from N57S1)
Expose intake pipe up to connection on vane pump.

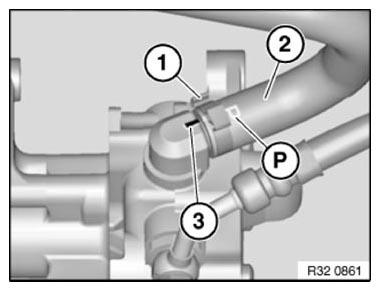

Unfasten hose clamp (1).
Pull intake pipe (2) off vane pump.
Installation note:
When installing the intake pipe, make sure it is laid without tension and there is a sufficient gap to the adjacent components.
Use identification (P) of intake pipe (2) and bridge (3) on vane pump as an approximate guide for alignment.
After installation:
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for leaks
