32 41 250 Removing And Installing/Replacing Fluid Reservoir For Power Steering

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with plugs.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir

Unscrew nuts.

Remove shims.

Installation:

Replace self-locking nuts.

Tightening torque: 32 41 1AZ .

Fig 1: Locating Nut Of Dynamic Drive Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection and hoses.

If necessary, disconnect plug connection at level switch.

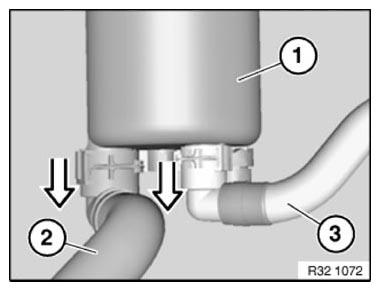

Release suction line (2) and cooler return line (3) from fluid reservoir (1) and detach in direction of arrow.

Lift out fluid reservoir (1).

Fig 2: Releasing Suction And Cooler Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove level switch.

After installation:

Fill and bleed HYDRAULIC SYSTEM
Check pipe connections for leaks

Version with Dynamic Drive:

If necessary, carry out INITIAL DYNAMIC DRIVE OPERATION
