18 12 030 Replacing rear silencer (B48)

WARNING: This page is about a different variant/trim than selected.

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Call on the assistance of a second person to remove the rear silencer.

Necessary preliminary tasks:

Support rear silencer with a suitable jack and secure against falling down.

Removal:

NOTE: If the separation point line is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new rear silencer.
Carry over separation point to faulty rear silencer and mark.
Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Remove screws (arrows).

Remove connection carrier (1).

Courtesy of BMW OF NORTH AMERICA, INC.

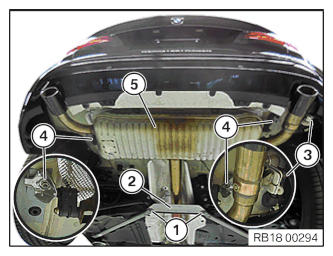

Loosen screw (1).

Remove cross strut (2) on the rear axle.

Release nut (4) on the rear left body.

Release nut (4) on the rear right body.

Unlock and release connector (3) from controller drive for exhaust flap.

Remove rear silencer.

Replaced damaged rubber mounts.

Parts: Rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten nut (4) on the rear left body.

Tighten nut (4) on the rear right body.

Tightening torque 33 31 2AZ .

Connect and lock connector (3) of the controller drive for exhaust flap.

Connector (3) must engage audibly.

Remove cross strut (2) on the rear axle.

Tighten screw (1).

Tightening torque 18 30 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Install connection carrier (1).

Tighten screws (arrows).

Tightening torque 18 30 5AZ

Courtesy of BMW OF NORTH AMERICA, INC.

With four-wheel drive only

Position cross member (2) on rear axle support.

Ensure correct installation position: Arrow (3) on cross member points in direction of travel!

Part: Replace screws (1).

Tighten down screws (1).

Tightening torque 33 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new rear silencer and connect by clamp to center silencer.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check exhaust system for leak tightness.
