27 10 010 Removing and installing transfer case: Notes

WARNING: This page is about a different variant/trim than selected.

IMPORTANT:

After completion of work, check GEARBOX OIL LEVEL and top up if necessary.

Use only the APPROVED GEARBOX OIL . Failure to comply with this requirement will result in serious damage to the transfer case!

Special tools required :

00 2 030
23 4 050

Necessary preliminary tasks :

Disconnect negative battery cable.
Remove RIGHT OUTPUT SHAFT .
Unlock the parking lock.
Remove PROPELLER SHAFT .
Remove STARTER MOTOR .
Remove INTERMEDIATE SHAFT WITH SUPPORT TUBE .
Remove HOLDER WITH RUBBER MOUNT .
Support transmission with lifter.

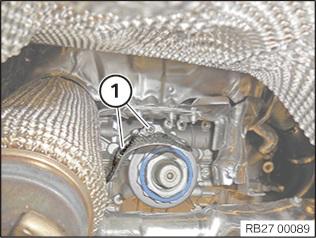

Release screws (1).

Remove the heat shield.

G00595556

Courtesy of BMW OF NORTH AMERICA, INC.

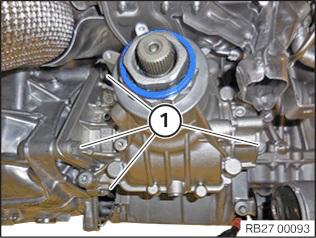

Release screws (1).

Remove the transfer case.

G00595557

Courtesy of BMW OF NORTH AMERICA, INC.

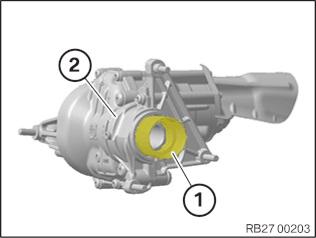

IMPORTANT: If the intermediate shaft (1) catches on the transfer case, replace the intermediate shaft (1) and radial shaft seal in the AT or manually insert a new intermediate shaft on the output of the AT. See the following instructions.

G00595558

Courtesy of BMW OF NORTH AMERICA, INC.

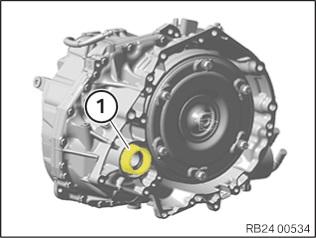

If necessary, insert the intermediate shaft (1) onto the AT output and renew the radial shaft seal.

G00595559

Courtesy of BMW OF NORTH AMERICA, INC.

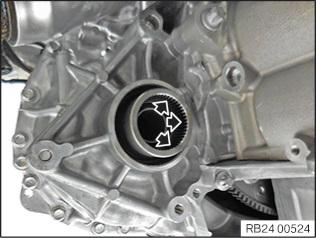

Evenly coat the inside of the output flange with approximately 5g grease.

Grease: Lubricating grease Optitemp HT 1 LF, part number 83 23 0 417 754

G00595560

Courtesy of BMW OF NORTH AMERICA, INC.

Install the transfer case.

Tighten screws (1).

Tightening torque 27 10 1AZ .

G00595557

Courtesy of BMW OF NORTH AMERICA, INC.

Install heat shield.

Tighten screws (1).

Tightening torque 27 10 2AZ .

G00595556

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install HOLDER WITH RUBBER MOUNT .
Install INTERMEDIATE SHAFT WITH SUPPORT TUBE .
Install STARTER MOTOR .
Install PROPELLER SHAFT .
Install RIGHT OUTPUT SHAFT .
Connect battery earth lead.
