(27 Removal of intermediate shaft with support tube from transfer case)

Necessary preliminary work:

• Remove FRONT UNDERBODY PROTECTION .

Removal:

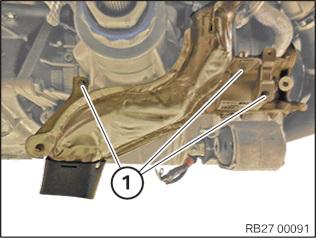

Loosen screws (1) and remove air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

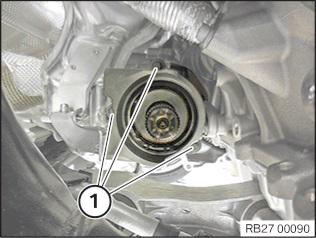

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

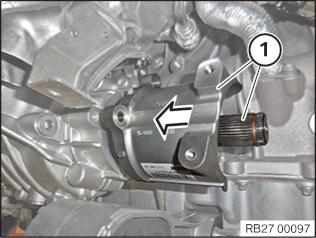

Pull intermediate shaft with support tube (1) out of transfer case.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

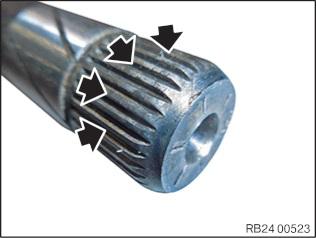

Coat gearing of intermediate shaft uniformly with 5g grease.

Grease: Lubricating grease Optitemp HT 1 LF, part number 83 23 0 417 754

Courtesy of BMW OF NORTH AMERICA, INC.

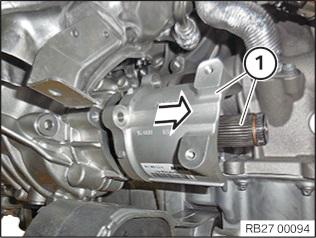

Install intermediate shaft with support tube (1) in transfer case.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1). Tightening torque 31 60 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install air duct and tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT UNDERBODY PROTECTION .
