51 32 160 Removing and installing/replacing inner cover on left or right window frame

Necessary preliminary tasks:

• Open side window if necessary
• Remove FRONT DOOR TRIM PANEL
• Remove inner WEATHER STRIP

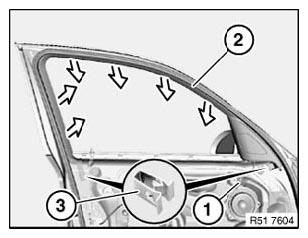

Lever out cover (2) at clamps (3).

Unclamp cover (2) in direction of arrow and remove.

Installation note:

Fixtures for clamps (3) on cover (2) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

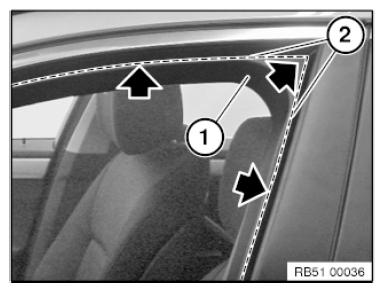

Make sure cover (1) is correctly seated in joint of rubber window seal (2).

Make sure cover (1) is correctly seated on door seal.

Courtesy of BMW OF NORTH AMERICA, INC.
