51 41 000 Removing and installing left or right front door trim panel

Special tools required:

• 00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

• Remove SWITCH COVER

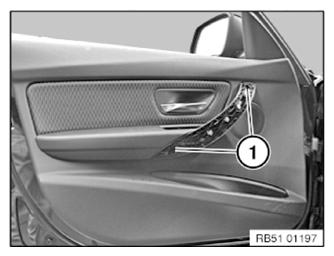

Release screws (1).

Tightening torque: 51 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

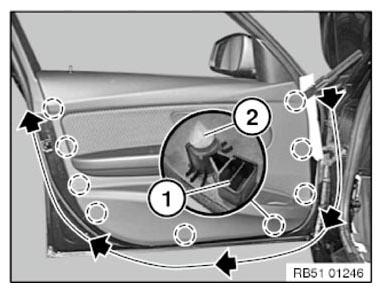

Insert special tool 00 9 325 between door trim panel and front door in area A-pillar/mirror triangle and lever door trim panel slightly towards inside.

Grasp the door trim panel with a free hand and mount special tool 00 9 325 directly on reinforcement (1) of the first clip (2).

Loosen door trim panel by levering against reinforcement (1) of the first clip (2).

Then release the remaining clips (2) in direction of arrow, pulling the door trim panel slightly inwards with your free hand.

Courtesy of BMW OF NORTH AMERICA, INC.

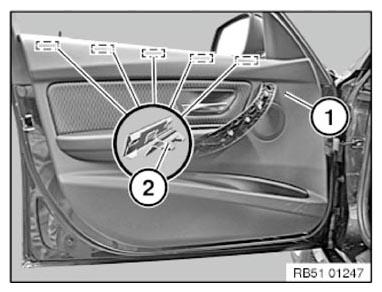

Pull door trim panel (1) off of clamps (2) in inward direction.

Installation note:

Replace faulty clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

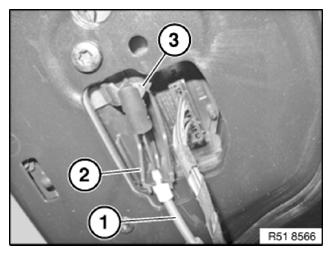

Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).

Installation note:

Perform function check for door inside handle with door open and rotary striker lock closed.

Feed out door wiring harness from all brackets.

Unlock and disconnect all plug connections, then remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

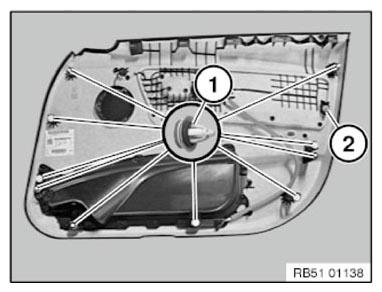

Replace faulty clips (1 and 2).

Make sure the installation location of the clips (1 and 2) is correct.

1. Clips (natural) with sealing washer
2. Clip (beige)

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After assembling the door trim panel proceed as follows:

• Open side window
• Lock with ignition key
• Check for ease of movement on locking button linkage
• If necessary, align linkage
