51 21 330 Removing and installing/replacing weatherstrip on inner front door

Special tools required:

Necessary preliminary work:

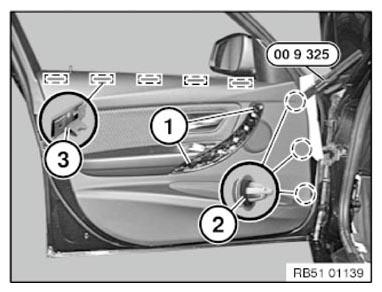

Release screws (1).

Tightening torque: 51 41 1 AZ .

Mask front door in working area of special tool 00 9 325 with plastic adhesive tape.

IMPORTANT: Slide in special tool 00 9 325 between door trim panel and door and fit directly on clip mounting.

Detach door trim panel with special tool 00 9 325 in area A-pillar/mirror triangle starting at clips (2).

Pull off door trim panel from clamps (3).

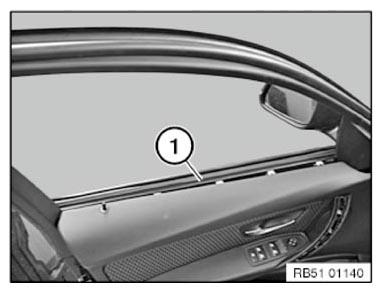

Pull out weatherstrip (1).
