Installing parking brake button
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

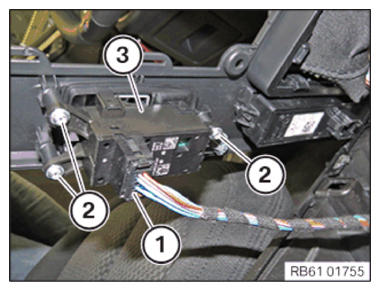

- Position parking brake button (3) correctly.
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Parking brake button to center console trim Screw Tightening torque 1.5 Nm - Connect connector (1) .
Follow-up work
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE DECORATIVE TRIM TO THE CENTER CONSOLE .
- Refer to INSTALLING THE GEARSHIFT LEVER COVER .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
