Install the wiring harness section for the Valvetronic servomotor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

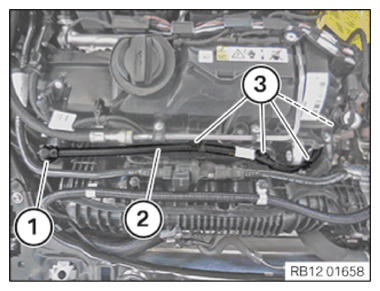

- Insert and install the wiring harness section (2) for the Valvetronic servomotor.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
- Fasten the wiring harness section (2) for the Valvetronic servomotor on the holder (3).
- Insert and install the wiring harness section (2) for the Valvetronic servomotor in the direction of the arrow.
- Ensure that the locks (1) engage audibly.
- Insert and install the wiring harness section (3) for the injectors and ignition coils in the direction of the arrow.
- Ensure that the lock (2) engages audibly.
- Insert and install the positive battery cable (1).

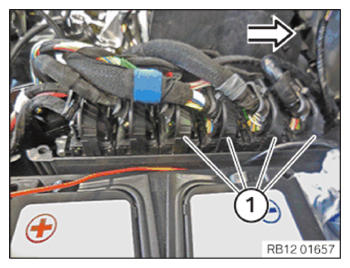

- Connect connector (1) in the direction of the arrow and lock.
- Make sure the connectors (1) engage audibly.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
- Insert and install the connector (1) to the E-box (2) in the direction of the arrow.
- Insert and install the cover panel (2) in the guides (3) in the direction of the arrow.
- Ensure that the cover panel (2) audibly engages in the guides (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Cover panel to E-box RF5x26.5 Tightening torque 25 Nm - Insert and install the positive battery cable (2) on the holder (3).
- Insert and install the battery positive terminal (1).
- Tighten the battery positive terminal (1).TIGHTENING TORQUE SPECIFICATIONS
Positive battery terminal to battery Nut M6 tightening torque 5 Nm - Insert and install the tension strut (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut on shock tower/battery tray | ||
|---|---|---|
| M8 | tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
