Installing the knock sensor at cylinders 1 to 2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.

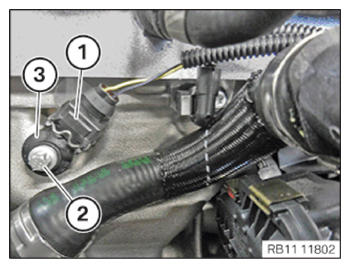

- Clean the contact surface of the knock sensor on the cylinder head.
- Insert and install the knock sensor (3).
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Knock sensor to crankcase M8x30 tightening torque 215 Nm - Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
