Install temperature sensor on the crankcase
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

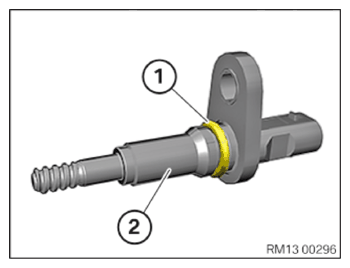

- When reusing the sealing ring (1), check for damage on the temperature sensor (2), replace if necessary.
- Insert and install temperature sensor (2).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Temperature sensor on the crankcase M6x18 Tightening torque 8 Nm - Connect and lock the connector (1).
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
