Installing the front underbody protection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

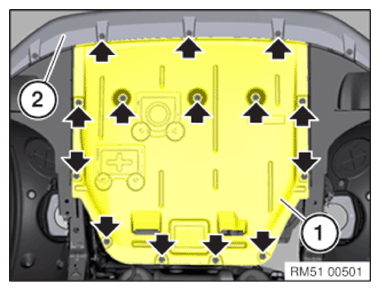

Guide the front underbody protection (1) in under the bumper panel (2) and position it at the screw points.

Tighten screws (arrows).

Tightening torques

Underbody protection, front
	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of intermediate shaft with support tube from transfer box

27 Removal of intermediate shaft with support tube from transfer box

Necessary preliminary work:

Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Removal:

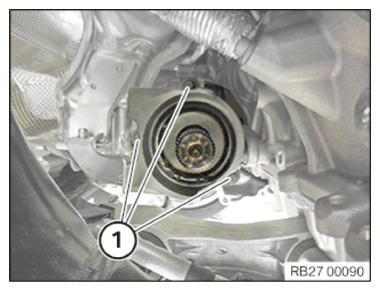

Loosen screws (1).

Remove air duct.

Courtesy of BMW OF NORTH AMERICA, INC.

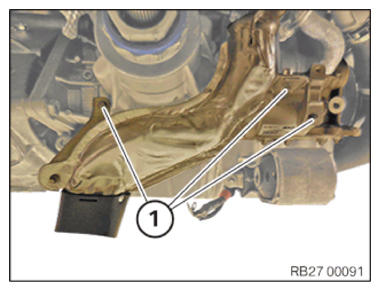

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

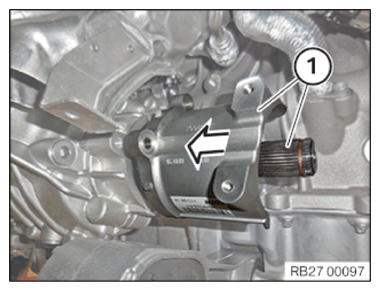

Pull intermediate shaft with support tube (1) out of transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

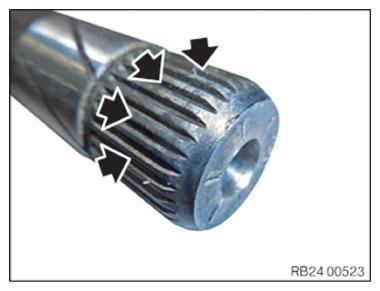

Coat gearing of intermediate shaft uniformly with 5g grease.

Grease: Lubricating grease Optitemp HT 1 LF; part number 83 23 0 417 754

Courtesy of BMW OF NORTH AMERICA, INC.

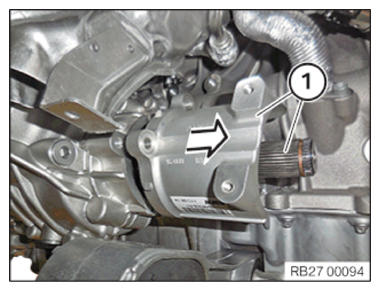

Install intermediate shaft with support tube (1) in transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Check for correct screw length!

Bolt M8x35 8.8

Tighten down screws (1).

Tightening torque 31 60 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install air duct.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
