Replacing cover for sports steering wheel (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Refer to REMOVING AIRBAG UNIT .
If necessary, remove both shift paddles for automatic transmission. Refer to REMOVING SHIFT PADDLE FOR AUTOMATIC TRANSMISSION .
Remove both multifunction steering wheel switches. Refer to.REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .

Removal:

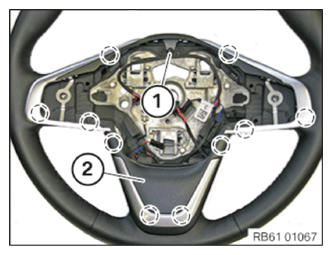

Release screw (1) at design trim (2).

Unclip design trim (2) carefully upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

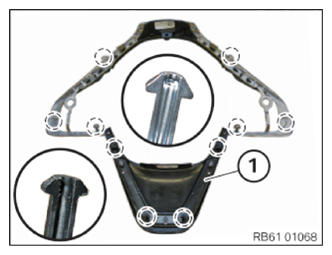

NOTE: The retaining lug at the design trim (1) may not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clip in design trim (2) and tighten with screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install both multifunction steering wheel switches. Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
If necessary, install both shift paddles. Refer to INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION
Refer to INSTALLING AIRBAG UNIT .
