Removing airbag unit of the steering wheel/sports steering wheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .
Preliminary work
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

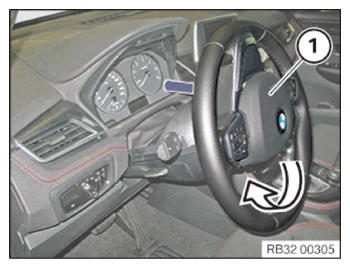

- Turn the steering wheel (1) through 180° from the "straight-ahead driving position".

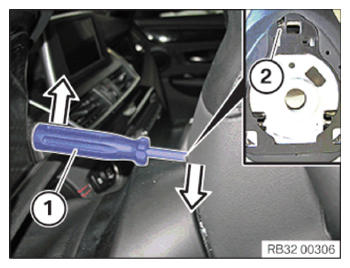

- Insert the slotted screwdriver (1) into the elongated hole on the rear side on the steering wheel.
- Push the slotted screwdriver (1) up and thereby push the retaining spring down (2).
The airbag unit is unlocked.

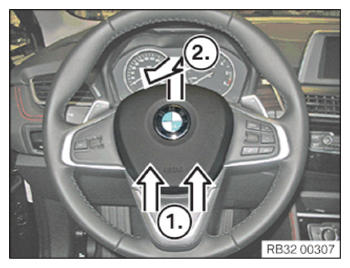

- Push unlocked airbag unit up.
- At the same time, pull off the top airbag unit in the opposite direction of travel.

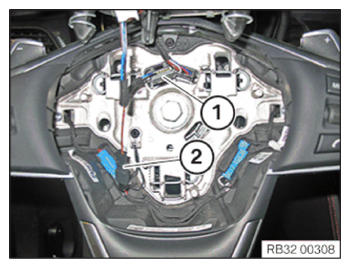

- Unlock and disconnect the plug connections (1) and (2).
- Remove airbag unit.
