KDS chassis/wheel alignment check with vehicle load up to design position (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Perform wheel alignment only while vehicle is loaded:
- If the technical prerequisites for alignment with ride height input are not fulfilled
- If the vehicle in question is a damaged vehicle
NOTE:
- Read and comply with GENERAL INFORMATION AND DEFINITIONS .
- Read and comply with GENERAL CHASSIS DEFINITION .
- Update KDS DATA STATES .
- Check compliance with TEST CONDITIONS , repair vehicle if necessary.
- If necessary, prepare vehicle hoist.
- Drive vehicle onto vehicle hoist.
NOTE:

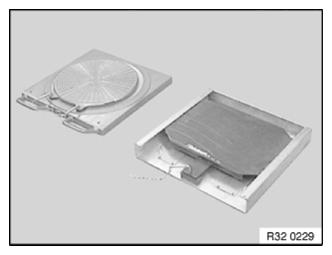

The front and rear wheels must be positioned centrally on the rotary and sliding plates.
NOTE:
Rotary plates may vary from illustration depending on the manufacturer!
Attach pickup/ride height marks to vehicle (observe specifications from the various equipment manufacturers).
IMPORTANT:

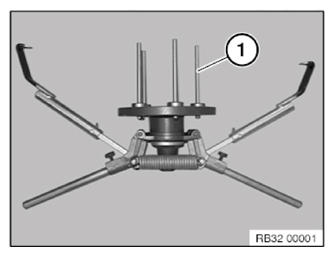

Use only quick connectors with poly control pins (1).
No other quick connect units without poly control pins are permitted due to measuring inaccuracies that are too great!
Graphic of KDS II pickup
No other quick connect units without poly control pins are permitted due to measuring inaccuracies that are too great!
Graphic of KDS II pickup
- Enter customer and vehicle data
- Identify CHASSIS VERSION and select vehicle
- Enter tire inflation pressure and tread depth
- Move VEHICLE INTO DESIGN POSITION .
- Install brake tensioner.
- Remove locking pins from both rotary and sliding plates.
- Perform input measurement in accordance with equipment manufacturer's instructions.
- If necessary, adjust front axle and rear axle. Refer to ADJUSTING TOE-IN ON FRONT AXLE .
- Perform output measurement in accordance with equipment manufacturer's instructions.
- Save and print out test record.
- Insert locking pins into both rotary and sliding plates
- Remove chassis/wheel alignment system
Only in event of customer complaint (e.g. poor driving performance):
IMPORTANT:
Do not remove screws/bolts (front axle support to engine support or body)!
Slacken all screws/bolts (front axle support to engine support or body) and then retighten to specified torque.
