Adjusting toe-in on front axle (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before each toe adjustment, the electromechanical steering gear (EPS) must be started up (initialization)!
CAUTION:
Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!
NOTE:
Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.
The camber adjustment is performed only with the replacement of the swivel bearing. There are various swivel bearings (+/-30') for this purpose.
-> See also ADDITIONAL WORK FOR CAMBER CORRECTION and BMW Parts Catalogue!
The camber adjustment is performed only with the replacement of the swivel bearing. There are various swivel bearings (+/-30') for this purpose.
-> See also ADDITIONAL WORK FOR CAMBER CORRECTION and BMW Parts Catalogue!
Bring the steering wheel into the straight-ahead position and secure with steering wheel arrester.
Adjust toe-in:
Clean thread on tie rod.

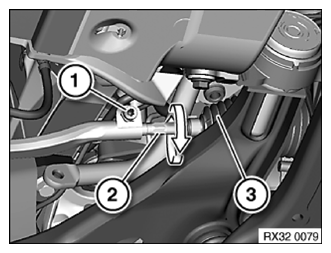

Slacken bolt (1).
Turn tie rod (2) to adjust toe-in to setpoint value, if necessary counterhold tie rod end.
Tighten screw (1).
Tightening torque 32 21 2AZ .
If necessary, correct installation position of gaiter (3).
After Installation note:
- Check directional stability of vehicle; if necessary, repeat toe-in adjustment
