Installing the dashboard

• With the help of a support person, carefully lift the dashboard into the vehicle through the front passenger door.
• With the help of a support person, slide in the dashboard carefully in a forward direction and connect all connectors while doing so.

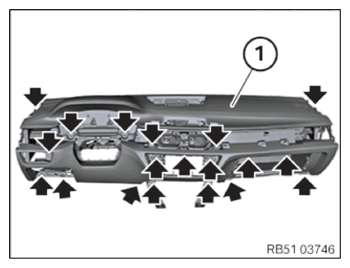

• Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Installing the instrument cluster trim.
  • Clip the trim (1) into the marked areas in arrow direction.

    Courtesy of BMW OF NORTH AMERICA, INC.

• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING STEERING WHEEL .
• Refer to INSTALLING THE AIRBAG UNIT OF THE STEERING WHEEL OR SPORTS STEERING WHEEL .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE FRONT SPEAKER HOLDER .
• Refer to INSTALLING THE HEADUNIT HIGH (HU-H) .
• Refer to INSTALLING RADIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING BOTH FRONT DOOR SILL COVER STRIPS .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER STACK TRIM .
• Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR STORAGE COMPARTMENT/DVD PLAYER .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
