Install the center console

• Lift front center console into the vehicle.
• Align center console on driveshaft tunnel and push from the front.

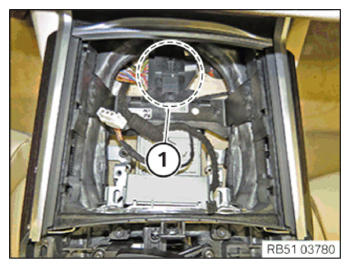

• Connect plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

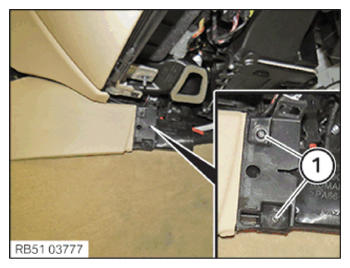

• Tighten the bolts (1) on the right side of the vehicle.
  TIGHTENING TORQUE SPECIFICATIONS



  Center console
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

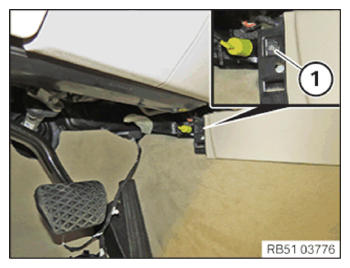

• Tighten the bolt (1) on the left side of the vehicle.
  TIGHTENING TORQUE SPECIFICATIONS



  Center console
  	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

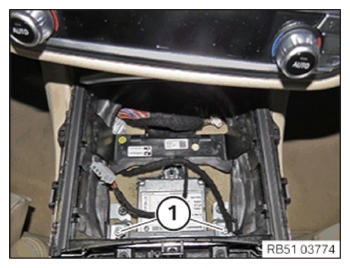

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console to holder
  Screw	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

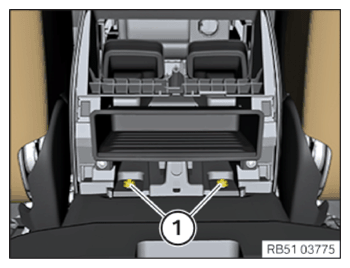

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Center console to holder
  Screw	Tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

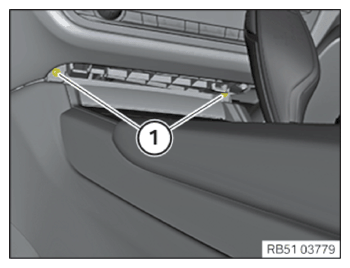

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER STACK TRIM .
• Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR STORAGE COMPARTMENT/DVD PLAYER .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
