Installing the instrument cluster (KOMBI)

NOTE: RISK OF DAMAGE
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable.

When releasing: First release the APIX data cable (blue).
When connecting: Connect the APIX data cable (blue) last.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1) to the instrument cluster (KOMBI) and lock.
Connect the blue connector (2) to the instrument cluster (KOMBI) and lock.

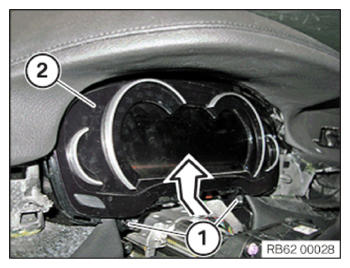

Guide in the instrument cluster (KOMBI) (2) in the direction of the arrow.
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Instrument cluster (KOMBI) to support
Oval-head screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Installing the instrument cluster trim.

Clip the trim (1) into the marked areas in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
