51 47 315 Removing and installing/replacing front carpet for passenger compartment
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
- Remove the CENTER CONSOLE .
- Remove the FOOTWELL SIDE TRIP PANEL ON A-PILLAR ON FRONT LEFT/RIGHT
- Remove the FRONT DRIVER SEAT , and FRONT PASSENGER SEAT
- Remove the COMPLETE ACCELERATOR PEDAL MODULE
- Remove the COVER FOR CENTRAL BASS SPEAKER left/right
IMPORTANT:
Risk of damage!
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible. This guarantees that cutting edges are covered by storage compartment and/or dashboard.

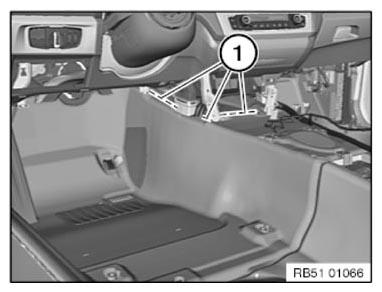

Cut out the carpet along the lines (1), including on the right side.
Remove carpet towards rear/top and if necessary feed out cable.
Installation note:

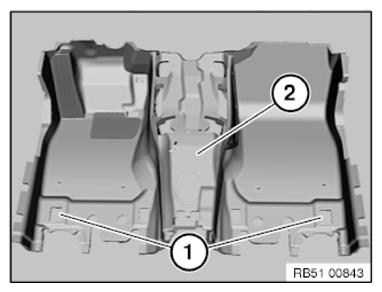

Apertures (1) serve as fixing points for fitting carpet.
Replacement:
Lay removed carpet over new one and transfer cuts to new carpet.
