35 40 001 Removing and installing or replacing accelerator pedal module
WARNING: This page is about a different car, the 2018 BMW 330i and 2017 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

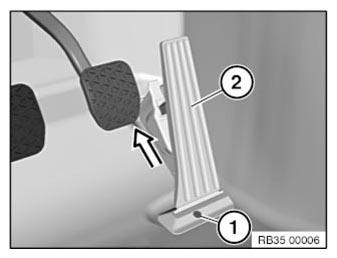

Take off protective cap.
Release screw (1).
Pull the accelerator pedal module (2) upwards out of bracket.
Installation note:
Tightening torque, refer to: 35 40 1AZ.
Pull off connector (1).
Remove accelerator pedal module.
