63 12 140 Replace the left LED technology headlight

Necessary preliminary work:

Removal:

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

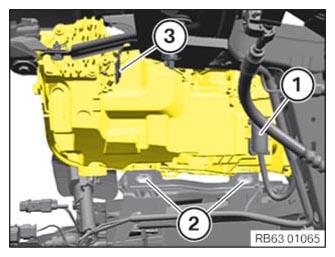

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Release screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

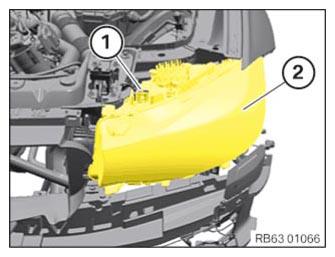

Release screw (1).

Remove headlight (2) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

US version : Checking blocking at horizontal position, refer to: CHECKING BLOCKING AT HORIZONTAL POSITION

Remounting control units/modules :

Remount front light electronics control unit, refer to: REPLACING CONTROL UNIT FOR LEFT XENON HEADLIGHT
Remount LED module for daytime driving lights, refer to: REPLACING THE LED MODULE FOR LEFT DAYTIME RIDING LIGHTS
Remount LED module direction indicator light, refer to: REMOVING AND INSTALLING LED MODULE OF LEFT TURN INDICATOR

Installation :

Thread in and position headlights (2).

Tighten screw (1).

Tightening torque, refer to: 63 12 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (2).

Tightening torque, refer to: 63 12 1AZ .

Tighten screw (3).

Tightening torque, refer to: 63 12 1AZ .

Connect and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1) and lock against the direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work :

Install front bumper panel, refer to: FRONT BUMPER PANEL
Refer to: ADJUST HEADLIGHT .
US version : Checking blocking at horizontal position, refer to: CHECKING BLOCKING AT HORIZONTAL POSITION
