51 24 130 Removing and installing/replacing striker for tailgate lock
Necessary preliminary work:
- Remove the TOP COVER FROM TAIL PANEL

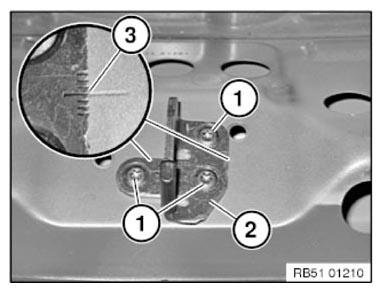

Release bolts (1) and remove striker (2).
Tightening torque 51 24 2AZ .
Installation note:
Establish basic setting using mark (3).
Adjust the REAR LID LOCK .
IMPORTANT:
Striker and tailgate lock must not be greased.
