Remove acoustic cover at front
Preliminary work
- Refer to REMOVING DESIGN COVER .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to REMOVING BOTH COOLANT EXPANSION TANKS .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING CHARGE AIR LINE .

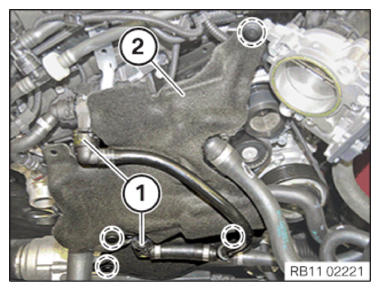

- Unlock and disconnect coolant lines (1).
- Release all expanding rivets in marked areas.
- Remove the acoustic cover (2).
