Removing both coolant expansion tanks
Preliminary work
- Refer to REMOVING DESIGN COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Remove the coolant expansion tank for the low-temperature coolant circuit
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Use commercially available pinch-off tools to pinch off the coolant hoses.
Use commercially available pinch-off tools to pinch off the coolant hoses.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Loosen sealing cap (1).
- Draw off coolant with standard pump.
- Unlock and loosen the locks (1).
- Catch and dispose of escaping coolant.
- Feed out coolant line (2) and place to one side.
- Loosen the coolant line (3) from the holder (4).
- Remove the coolant line (3).

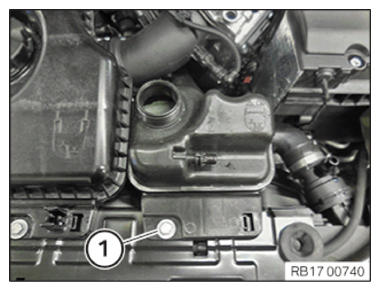

- Loosen screw (1).

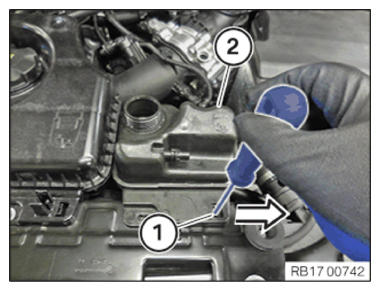

- Release lock (1) in direction of arrow.
- Lift the coolant expansion tank of the low-temperature coolant circuit (2).
- Unlock and loosen coolant line (1).
- Catch and dispose of escaping coolant.
- Guide the coolant expansion tank for the low-temperature coolant circuit (2)
out and remove.
- Loosen sealing cap (1).
- Draw off coolant with standard pump.

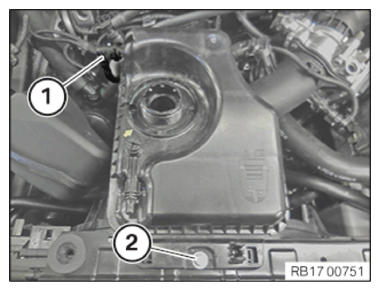

- Unlock and loosen coolant line (1).
- Loosen screw (2).

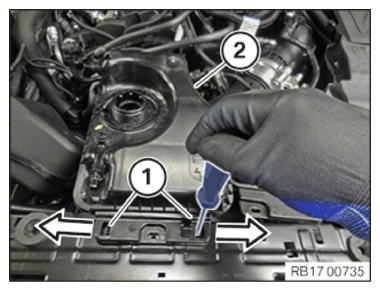

- Unlock the locks (1) in the direction of the arrow.
- Lift the coolant expansion tank for the high-temperature coolant circuit (2).
- Loosen the coolant expansion tank for the high-temperature coolant circuit (3) from the rubber mount (4).
- Unlock and loosen the connector (1) on the coolant level switch.
- Unlock and loosen coolant line (2).
- Catch and dispose of escaping coolant.
- Guide the coolant expansion tank for the high-temperature coolant circuit (3) out and remove.
