13 71 170 Removing air duct (N55)

Necessary preliminary tasks:

Unlock connector (1) and remove.

Release screw (2).

Pull off engine vent line (3) from air duct.

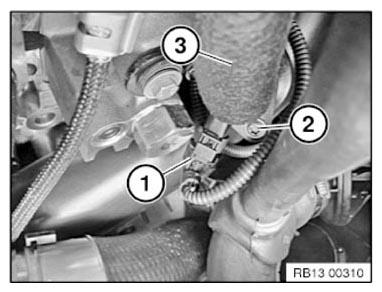

Fig 1: Identifying Engine Vent Line Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 13 71 2AZ .

Slacken nut (2).

Tightening torque: 13 71 3AZ .

Pull off air duct (3) from exhaust turbocharger, feed out and remove.

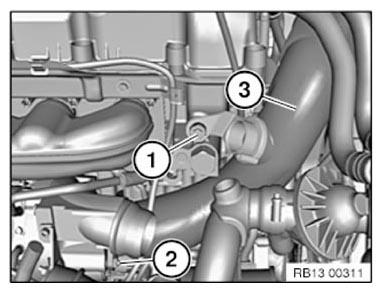

Fig 2: Identifying Exhaust Turbocharger Air Duct Screw And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
