51 47 490 Removing and installing/replacing front underbody protection

NOTE: Illustration only an example. Detail deviations (depending on engine version) are possible.

Release screws (1).

Tightening torque: 51 75 1AZ .

Release all screws along line (2).

Tightening torque: 51 75 1AZ .

Remove underbody protection (3).

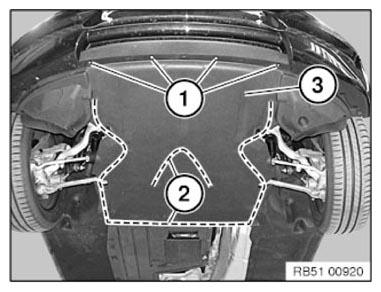

Fig 1: Identifying Underbody Protection Screws

Courtesy of BMW OF NORTH AMERICA, INC.
