51 45 180 Removing and installing/replacing instrument panel trim, bottom left
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove LEFT INSTRUMENT PANEL TRIM
- Remove RIGHT INSTRUMENT PANEL TRIM
- Remove TRIM PANEL FOR PEDAL ASSEMBLY
- Remove TRIM FOR STORAGE TRAY
- Remove AIRBAG MODULE FOR DRIVER KNEE PROTECTION
US version only:

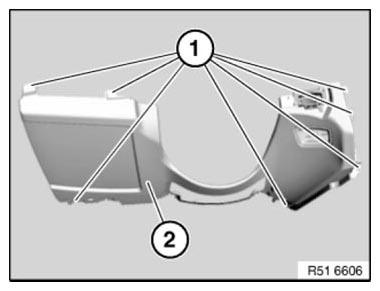

Release screws (1) on trim (2) and unclip left trim from steering column.
Carefully disconnect plug connection for ribbon cable on insert slot.
Installation:
Make sure trim is correctly seated.
Replacement
Remove INSERT FOR RADIO CONTROL KEY .
