72 12 004 Removing and installing/replacing airbag module for driver's knee protection
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Follow instructions for UNLOCKING AND LOCKING AIRBAG PLUG CONNECTIONS .
Incorrect handling can activate airbag and cause injury.
Follow instructions for UNLOCKING AND LOCKING AIRBAG PLUG CONNECTIONS .
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Necessary preliminary tasks
IMPORTANT:
Secure airbag module against falling out.

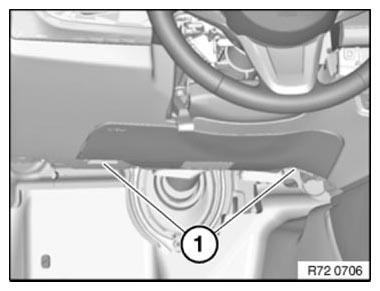

Unscrew nuts (1).
Tightening torque 72 06 02AZ .
Feed airbag module out of instrument panel trim and unlock and disconnect PLUG CONNECTION behind.
Installation:

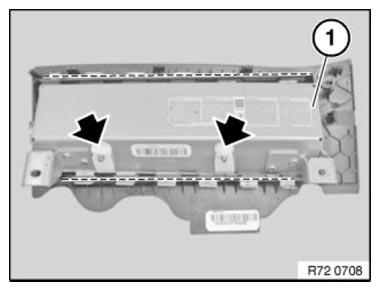

Make sure airbag module (1) is correctly seated in instrument panel trim.
Make sure lugs are correctly seated on threaded bolts.
