66 12 100 Removing and installing/replacing slide-in unit for radio control key
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
In the event of complaint "slide-in unit for radio-operated key jams or can not be retained", carry out following checks before replacement:
- Check both sides of plug connection of ribbon cable (2) to slide-in unit for radio-operated key (1) for correct locking (3).
- Check ribbon cable (4) for damage.
If required, lock plug connection of ribbon cable (2) correctly and carry out function check.
If this rectifies fault pattern, do not replace slide-in unit for radio-operated key.
Necessary preliminary tasks
Replacement

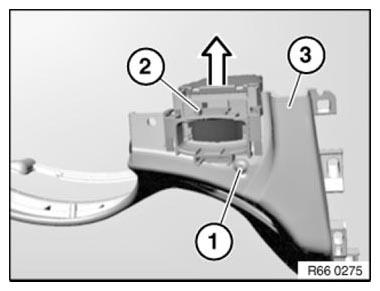

Release screw (1).
Remove slide-in unit for radio control key (2) in direction of arrow from panel (3).
