51 46 070 Removing and installing/replacing upper partition panel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR SIDE TRIM PANELS
Remove ROLLOVER PROTECTION COVER BRACKET
If necessary, place backrests in vertical position and move seats fully forwards

Release screws (1).

Lever out caps for lashing eyes and release screws (2).

Tightening torque 51 46 6AZ .

Professional HiFi system only:

Remove TWEETER (3)

Lift out upper partition wall panel (4) at an angle.

Replacement

If necessary, replace middle trim (3).

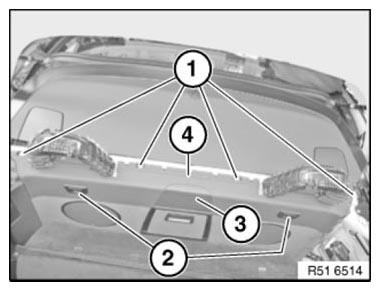

Fig 1: Identifying Middle Trim And Upper Partition Wall Panel With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking hooks (1) on front partition wall panel (2) must not be broken.

If necessary, replace upper partition wall panel (2).

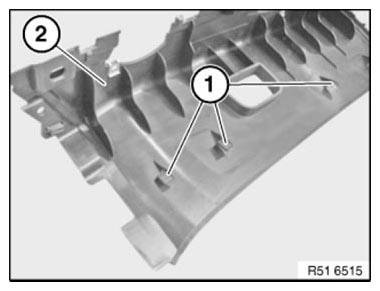

Fig 2: Identifying Locking Hooks On Front Partition Wall Panel
