51 43... Removing and installing/replacing left or right rollover protection cover bracket

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Necessary preliminary tasks

Remove UPPER (REAR) PARTITION PANEL

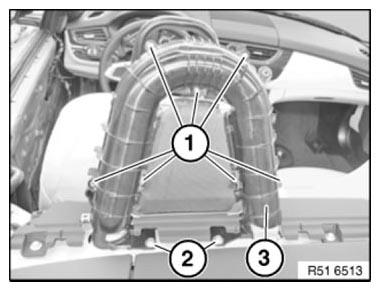

Release screws (1) and (2).

Remove split rollover protection cover bracket (3).

Fig 1: Identifying Split Rollover Protection Cover Bracket With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

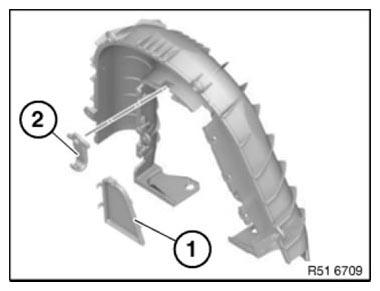

Modify wind deflector (1) and coat hook (2).

Fig 2: Identifying Wind Deflector And Coat Hook

Courtesy of BMW OF NORTH AMERICA, INC.
