51 43 120 Removing and installing/replacing rear left or right side trim panel

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Necessary preliminary tasks

• Remove REAR TOP SIDE TRIM PANEL

Installation:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not  be retightened
• Clean thread of nut beforehand in event of repeated use

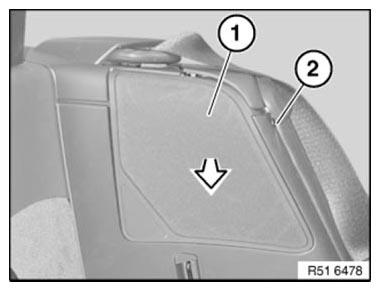

Snap out speaker cover (1) with a suitable tool.

Lever out fixing rivet (2) from rubber skirt for inner window cavity cover strip.

Installation:

If necessary, replace fixing rivet (2).

Fig 1: Removing Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

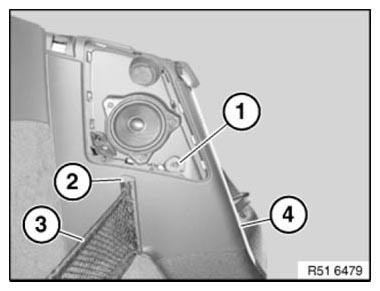

Partially remove door seal (4).

Lift off cover (2).

Remove storage net (3) with rod.

Release screw (1).

Installation:

Make sure door seal (4) is correctly seated.

Fig 2: Identifying Cover, Storage Net, Door Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

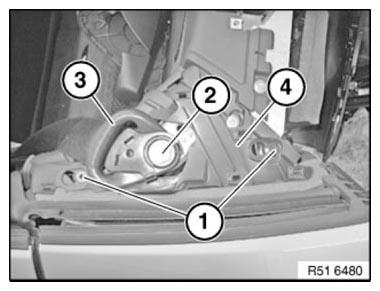

Lever out retaining clips (1) with a suitable tool.

Release screw (2).

Tightening torque 72 11 03AZ .

Remove reversing clip (3).

Installation:

Deflection fitting (3) is encoded against incorrect installation.

Fig 3: Identifying Retaining Clips And Reversing Clip With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

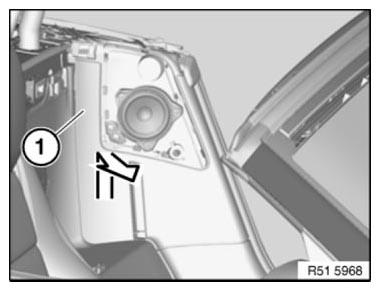

Remove side trim panel (1), as pictured, in direction of arrow.

Unlock and disconnect plug connection behind.

Fig 4: Removing Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

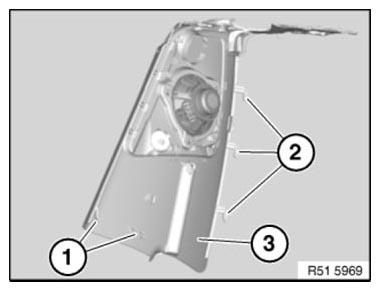

Installation:

Make sure side trim panel (3) is correctly seated.

Retaining lugs (1) and (2) must not be damaged.

If necessary, replace side trim panel (3).

Replacement

Modify MID-RANGE SPEAKER .

Fig 5: Identifying Side Trim Panel With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
