51 11 157 Replacing front bumper trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove front BUMPER TRIM

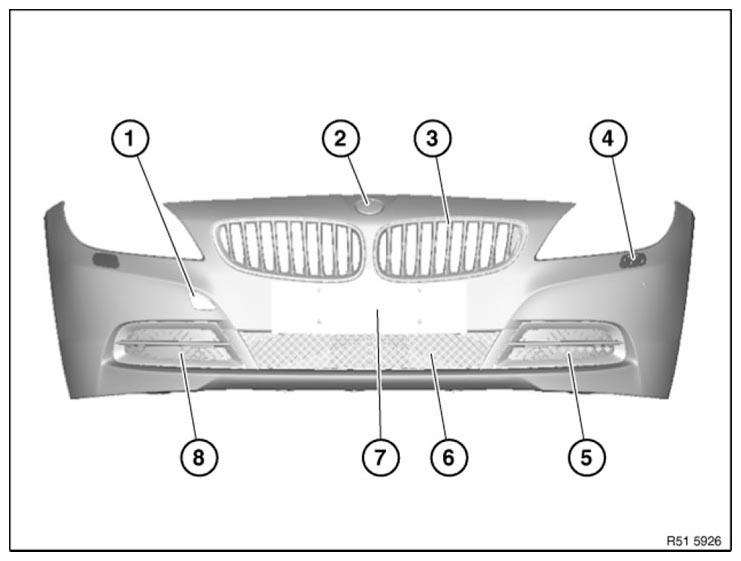

Fig 1: Identifying Front Bumper Trim Components

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover cap (1) for tow lug.

Remove BMW BADGE (2) .

Remove FRONT RADIATOR GRILLE (3) on left/right.

If necessary, remove HIGH-PRESSURE NOZZLE (4) of left/right headlight cleaning system.

Remove ornamental grille in bumper trim (side left or right) on left/right.

Remove MIDDLE TRIM GRILLE (6) .

Remove LICENSE PLATE HOLDER (7) .

If necessary, remove fog lamp (8) on left/right.

If necessary, remove side reflector or dummy part on left/right.
