51 11 156 Removing and installing front bumper trim

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove COVER FOR HEADLIGHT WASHER SYSTEM on left and right

Remove seal in area (1).

Release screws in area (1).

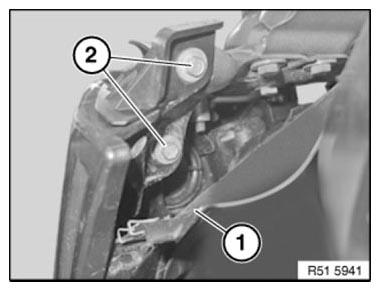

Fig 1: Identifying Seal And Screws Areas

Courtesy of BMW OF NORTH AMERICA, INC.

The right side is removed in the same way as the left side.

Release screws (1).

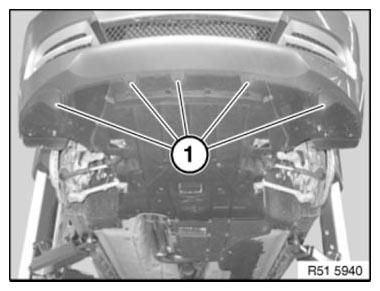

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

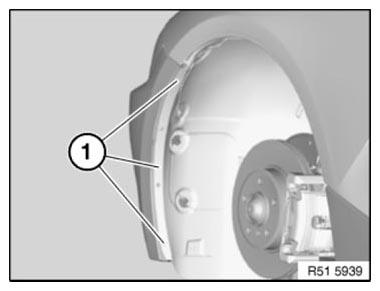

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

The right side is removed in the same way as the left side.

Lift off wheel arch cover (1) in upper area.

Unfasten screws (2).

Fig 4: Identifying Wheel Arch Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

The right side is removed in the same way as the left side.

Unclip bumper trim (1) in area (2) in direction of arrow.

Pull bumper trim (1) forwards slightly and disconnect plug connections.

Remove bumper trim (1) straight forwards with a 2nd person helping.

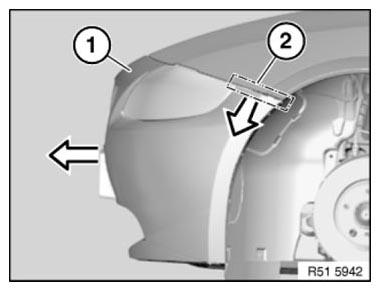

Fig 5: Removing Bumper Trim
