51 11... Removing and installing/replacing cover for headlight washer unit on left
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

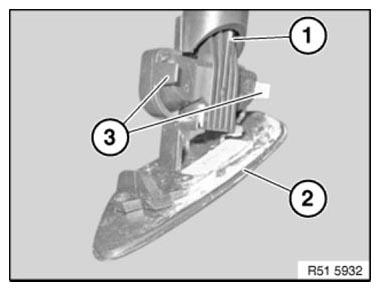

Pull out spray nozzle (1) by cover (2) slightly.
IMPORTANT:
When releasing cover (2), grip spray nozzle (1) firmly and then allow to slide back slowly (risk of damage).
Release cover (2) from spray nozzle (1).
Installation:
Retaining lugs (3) must not be damaged.
