33 33 101 Replacing two rubber mounts for rear axle carrier (rubber mounts, front)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of explosion!
Do not point air jet from hot air blower at fuel tank!

Necessary preliminary tasks

Lower REAR AXLE CARRIER

Assemble special tool 33 4 140 with 33 4 142 and 33 4 147.

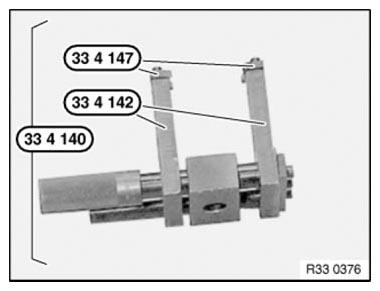

Fig 1: Assembling Special Tool (33 4 140) With (33 4 142 And 33 4 147)

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tools 33 4 140, 33 4 155, 33 3 371, 33 3 372 and nut (1) on openings of rubber mount.

NOTE: Ensure it is correctly supported on bushing of rear axle carrier.

Using a hot air blower, heat bearing bushing at max. 600 °C outlet temperature for approx. 2 minutes.

Pull out rubber mount by turning special tool 33 4 155.

Fig 2: Pulling Out Rubber Mount Using Special Tool (33 4 155)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber mount with Circo Light anti-friction agent.

IMPORTANT: Front rubber mounts differ:
Rubber mount VR = front right with elongated hole (1)
Rubber mount VL = front left
When rubber mount is fitted, arrows (2) must point down longitudinal axis of vehicle.

Fig 3: Identifying Front Rubber Mount Fitting Arrows On Left And Right Side

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount (1) with special tools 33 3 314, 33 3 315, 33 3 372 and 33 3 373 as far as it will go.

Fig 4: Installing Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Check seating of coil spring with spring pads, correct if necessary
Perform CHASSIS ALIGNMENT CHECK
